PIC16F84 2.7GHZ FREQUENCY METER CIRCUIT 100KHZ RESOLUTION PICBASIC PRO

Summary of PIC16F84 2.7GHZ FREQUENCY METER CIRCUIT 100KHZ RESOLUTION PICBASIC PRO


This project describes a frequency meter using a PIC16F84 microcontroller with a prescaler (LMX5080) to measure frequencies up to 2.7 GHz, ideal for applications requiring moderate precision like ATV. The prescaler extends the microcontroller's direct measurement limit (13 MHz) by a factor of 256. A 2x16 LCD displays the measured frequency and the prescaled value. The circuit includes a common-emitter amplifier stage with a 2N2369 transistor and resistors to interface the input signal. The software is provided in PIC BASIC PRO with assembler routines, allowing customization.

Parts used in the PIC16F84 2.7GHz Frequency Meter:

  • PIC16F84 microcontroller
  • LMX5080 prescaler (or alternative prescaler)
  • 2N2369 NPN transistor
  • 560 Ohm resistor
  • 39 kOhm resistor
  • 470 Ohm resistor
  • 2-line 16-character LCD display
  • Capacitor (for input coupling)
  • Power supply (+5V)

Frequency meter PIC16F84 with prescaler This small unpretentious frequency is for SHF measures up to 2.7 GHz for which we do not look great precision (eg ATV). Like many circuits of this kind, it is based on the AN592… Electronics Projects, PIC16F84 2.7GHz Frequency Meter Circuit 100kHz resolution Picbasic Pro “microchip projects, microcontroller projects, pic16f84 projects, picbasic pro examples,

Frequency meter PIC16F84 with prescaler This small unpretentious frequency is for SHF measures up to 2.7 GHz for which we do not look great precision (eg ATV). Like many circuits of this kind, it is based on the AN592 Application note Microchip.

This is actually a frequency that can operate up to 13 MHz which I added a prescaler LMX5080 by 256. This circuit is no longer manufactured, but it can be replaced by any available prescaler (the value of prescaler is selectable by software).

The LCD display 2 lines of 16 characters, indicates the frequency measured by the frequency on the first line and multiplied by 256 (or whatever) to the second value. The scheme is available at ISIS screen or JPEG format . You can download the printed size ARES system . The app is written in PIC BASIC PRO with some assembler. The source code is available here . It is widely commented and everyone can adapt to their needs.

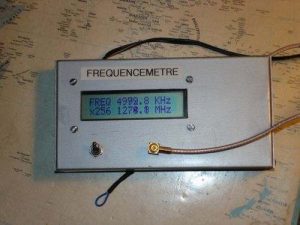

PIC16F84 FREQUENCY METER

The amplifier comprises a common emitter 2N2369 (grounded), 560 Ohms resistor (connected to +5 volts) and the collector resistor 39K between collector and base. Input from the base via a capacity, exit to the header to the resistance Inlet of the frequency (470 Ohms -> RA4).

Source: f6csx.free.fr PIC16F84 2.7GHz Frequency Meter Circuit 100kHz resolution Picbasic Pro source code schematic etc. files:

FILE DOWNLOAD LINK LIST (in TXT format): LINKS-4446.zip

Source: PIC16F84 2.7GHZ FREQUENCY METER CIRCUIT 100KHZ RESOLUTION PICBASIC PRO
