Calculator Test using PIC24FJ64GA006 with Proteus Simulation

Introduction

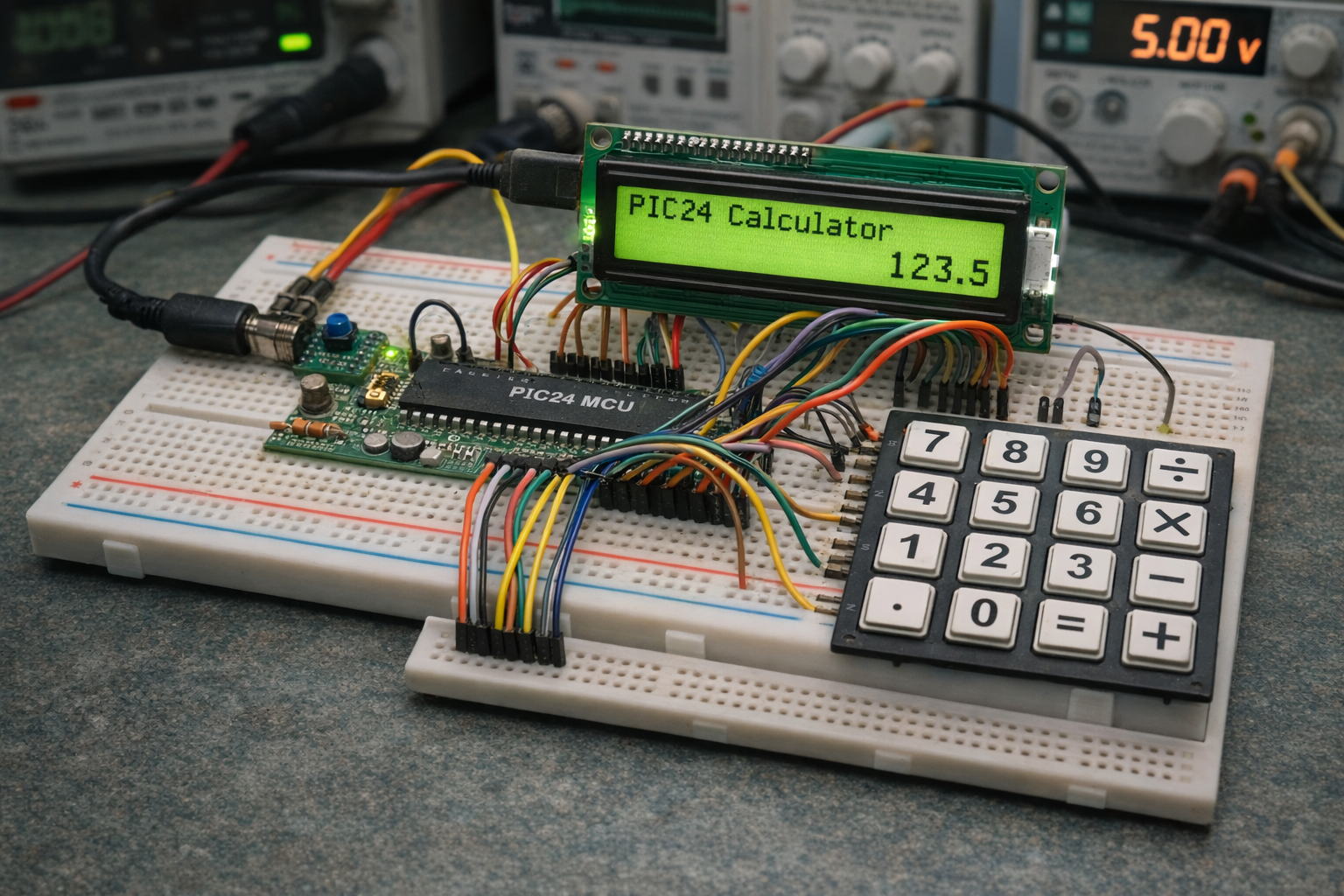

The Calculator Test using EASYHDL is a practical microcontroller project built on the PIC24FJ64GA006 and simulated in Proteus. This project demonstrates how a keypad-based calculator can be implemented using embedded systems concepts.

It uses a 4×4 matrix keypad for input and a 16×2 LCD display for output, making it a great example of DIY electronics and human-machine interfacing. The system processes arithmetic operations in real-time and displays results instantly. This project is ideal for understanding Proteus simulation, firmware logic, and practical electronics design.

How the Project Works (Overview)

The calculator works by continuously scanning the keypad for user input. Each pressed key is interpreted either as a number or an operator.

• Numeric inputs are stored in a buffer
• Operators trigger arithmetic calculations
• The result is formatted and displayed on the LCD

The firmware maintains:

• Left operand (lvalue)
• Right operand (rvalue)
• Last operator (lastop)

When = is pressed, the system computes and shows the result. Error handling is included for cases like division by zer

Workflow Explanation

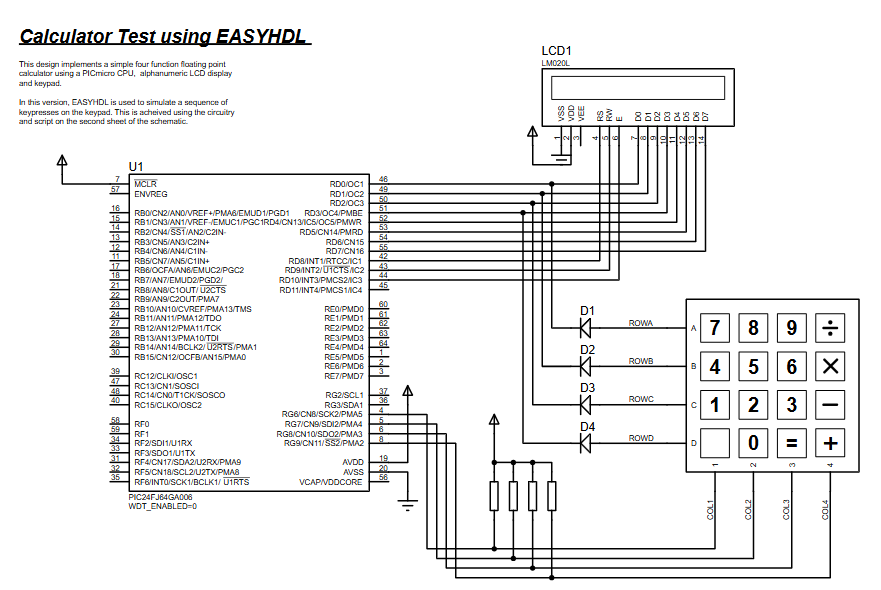

Based on the schematic and code logic:

1. Keypad Input (4×4 Matrix)
   • Rows driven by MCU
   • Columns read with pull-up resistors
2. Microcontroller Processing
   • Key scanning
   • Input buffering
   • Arithmetic computation
3. LCD Output
   • Commands and data sent via PORTD
   • Displays numbers and results
4. Control Flow
   • Infinite loop polling keypad
   • Decision: digit or operator
   • Execute operation → update display

Key Features

• Real-time calculator using keypad input
• Supports + , − , × , ÷ operations
• Floating-point number handling
• Error detection (division by zero)
• LCD-based user interface
• Efficient keypad scanning algorithm
• Clean firmware structure using modular functions

Components Used

From schematic and source code:

• PIC24FJ64GA006 Microcontroller
• 16×2 LCD (LM020L compatible)
• 4×4 Matrix Keypad
• Pull-up resistors (for keypad columns)
• Diodes (row isolation in keypad)
• Power supply

Applications

This type of embedded systems project can be used in:

• Educational calculator systems
• Industrial control panels
• Embedded UI systems
• Digital instrumentation
• Learning microcontroller project design
• Custom input-output interfaces

Explanation of Code (High-Level)

Core Modules:

• Keypad Interface
  • Scans rows/columns to detect key press
  • Returns ASCII value of pressed key
• LCD Driver
  • Sends commands/data using PORTD
  • Handles busy flag and display control
• Calculator Engine
  • Stores operands and operators
  • Performs arithmetic operations
  • Formats output for display
• Main Control Loop
  • Continuously reads input
  • Updates display dynamically

Source Code

/******************************************************************************
************                 LABCENTER ELECTRONICS                  ************
************           Proteus VSM Sample Design Code               ************
************                   MPLAB C30 'C' Calculator             ************
*******************************************************************************/

#include "p24FJ64GA006.h"
#include "calc.h"
#include "stddef.h"
#include "math.h"
#include "stdlib.h"
#include "string.h"

_CONFIG1(FWDTEN_OFF);
_CONFIG2(FNOSC_FRC&POSCMOD_NONE);

//Variables
static FLOAT lvalue = 0;
static FLOAT rvalue = 0;
static CHAR lastop;

⬇ Download file

Complete Source Code

Proteus Simulation

In Proteus simulation, the system behaves like a real calculator:

• Pressing keypad buttons inputs numbers/operators
• LCD updates instantly with typed values
• On pressing =, result is displayed
• Error message appears for invalid operations

This makes it an excellent virtual testing environment before hardware implementation.

Conclusion

This PIC24 calculator project is a solid example of combining Proteus simulation, keypad interfacing, and LCD control in embedded systems. It demonstrates real-world firmware design, modular coding, and hardware interaction.

Whether you’re learning or building practical DIY electronics, this project provides a strong foundation in microcontroller-based system design.

Complete File

⬇ Download file
