Summary of CALCULATION OF BODY LENGTH WITH 8051 AND DS89C430
This project calculates body length for a marching band using a DS89C430 microcontroller (simulated with AT89C51RC2) and an LCD display. The circuit integrates a voltage regulator, a sensor system, and the main processing unit to measure distance and visualize results.
Parts used in the Calculation of Body Length with 8051 and DS89C430:
- DALLAS DS89C430 microcontroller
- AT89C51RC2 (for simulation)
- LCD display
- 7805 voltage regulator
- Fototransistor sensor
- Moving walkway
In this project, which is designed using DALLAS DS89C430 microcontroller (in simulation AT89C51RC2) circuit and a marching band, calculated on the length of the body, the LCD display was performed. Circuit consists of three parts. In the first part,… Electronics Projects, Calculation of Body Length with 8051 and DS89C430 “8051 example, avr project, keil example, microcontroller projects,
In this project, which is designed using DALLAS DS89C430 microcontroller (in simulation AT89C51RC2) circuit and a marching band, calculated on the length of the body, the LCD display was performed.
Circuit consists of three parts.
In the first part, designed with the supply voltage for regulating the voltage source 7805 is used.
In the second part of the object on the moving walkway Fototransistörl sensor for detecting the sensor circuit can be used.
The third part of the circuit consists of a portion of the 8051 microcontroller and LCD.

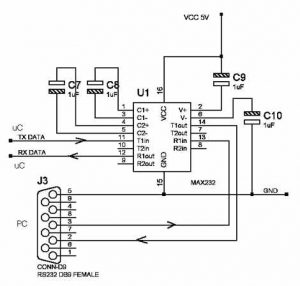

DS89C430 PROGRAMMER CIRCUIT
Calculation of Body Length with 8051 and DS89C430 keil source code proteus isis simulation schematic
FILE DOWNLOAD LINK LIST (in TXT format): LINKS-1349.zip
Source: CALCULATION OF BODY LENGTH WITH 8051 AND DS89C430
- What microcontroller is used in this project?
The project uses the DALLAS DS89C430 microcontroller. - Can I simulate the circuit with a different chip?
Yes, the circuit is simulated using the AT89C51RC2. - How is the voltage regulated in the first part?
A 7805 component is used to regulate the supply voltage source. - Which sensor detects objects on the moving walkway?
A Fototransistor sensor is used for detecting the object. - What does the third part of the circuit consist of?
The third part consists of the 8051 microcontroller and the LCD. - How is the body length displayed?
The calculated body length is performed on the LCD display. - Where can I find the source code and schematic?
Files are available in the LINKS-1349.zip download list. - Does the project use Keil software?
Yes, the project includes Keil source code and Proteus ISIS simulation.
