wireless electronics notice board using gsm with code

wireless electronics notice board using gsm with scrolling display is widely at public places for displaying the public information. No doubt, electronic display is a common way to display notice but this is not a flexible option for displaying messages or information instantly. Here we have been introducing a modern and advanced wireless control notice board for this specific purposes. wireless electronics notice board is used to provide opportunity for user to change message on notice board by simply sending message from mobile. We will start with basic introduction of with gsm based project.  you can check a list of embedded system projects for more details.

Wireless Electronics Notice Board abstract

The main purposes of design this electronic notice board system is to interface with user mobile phones for displaying the latest information. In other words, the user can easily send the message or information for displaying from remote areas. In this system, the user sends the information or data from remote areas and this information or data is received by the sim loaded into GSM modem which is basically receiving end. This system is designed with PIC family pic18f452 microcontroller, which is interfaced with GSM modem and level shifter through serial cable. LCD is also used in this system for displaying the information or data.

Block Diagram Wireless Electronics Notice Board

The block diagram of wireless electronics notice board is shown in figure

Block Diagram Wireless Electronics Notice Board

The further information and detail about this specific design is given below for each and every component used in this electronics project.

Components List of Wireless Electronics Notice board

This specific design has following components

  1. Transformer
  2. Bridge Rectifier
  3. Voltage Regulator
  4. Pic Microcontroller 18F452
  5. Max 232
  6. GSM Modem
  7. LCD Display

Transformer:In this wireless electronic notice the transformer,which consists of two winding’s primary and secondary is used for converting the 220V to 12V ac because this system is directly connected to the wapda power supply.

Bridge Rectifier:The bridge rectifier, which consist of four didoes is used for converting the ac voltages into dc for providing the power to the other components.

Voltage Regulator:The voltage regulator is used for providing the fix 5 volts, to the microcontroller and LCD display. In the absence of voltage regulator, the higher voltage may be damage the LCD display or microcontroller and in this system these two components are too much important.

Pic Microcontroller 18F452:18F452 is very popular and 8-bit microcontroller belongs to pic a family. It is 10-bit microcontroller which has self-programming, 250 bytes of EEPROM and 40MHz maximum speed. It also has 8 channel of analog to digital converter(A/D), two PWM functions and synchronous serial port for serial communication. The synchronous serial port can also be configured either for 3 wire serials peripheral interface (SPI) or 2 wire inter integrated circuit bus and addressable universal asynchronous transmitter receiver. All these features in this microcontroller make this ideal for monitoring and instrumentation, power conditioning, data equation, manufacturing equipment, environmental monitoring, telecoms and consumer audio video applications.

Max232: Max 232 is a 16-pin dip package, which consists of three major blocks and is powered by 5 volts’ supply. It is mostly used in embedded system for serial communication. The problem is occurred when we communicate between TTL logic and CMOS logic because, here in wireless electronic notice board we are communicating between GSM modem and microcontroller therefore the problem would be occurred. For solving this problem, the max 232 is used in this specific wireless electronic notice board.

READ  Load Control Energy Meter Reading System Using PIC Microcontroller

GSM Modem: The GSM modem is a wireless modem, which can’t work without wireless network. This modem works like a dialup modem and sim is required for communication. In dialup modem the data is send or received through the fix telephonic line but in GSM modem data is send or received though the radio waves.

LCD Display: LCD means the liquid crystal display, which is thin flat display device and is made up of any number of colure or monochrome pixels’ array in front of light source or reflector. In 4-bit data bus the LCD have required 7 data lines,3 lines for control and 4 lines for data bus. In 8-bit data bus, the LCD have required 11 data lines ,3 for control and 8 for data bus.

Circuit diagram of wireless electronic notice board

Circuit diagram of wireless electronic notice board

Below is a circuit diagram of wireless electronics notice board with gsm and pic microcontroller. You simply need to connect Gsm module Rx pin with tx pin of microcontroller and vice versa. But you should make should the operating voltages of both devices should be same. If both devices operate on different operating voltages, you need to connect a voltage divider circuit between them or any other circuit to make operating voltage adjustment.

Working video of wireless electronic notice board using gsm module

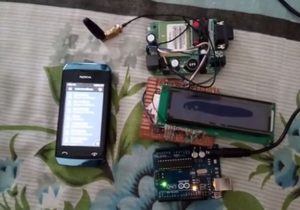

If you want to check real time demonstration of this pic microcontroller based project. Check out this video.

Read more: wireless electronics notice board using gsm with code
