Summary of PIC16F88 RF REMOTE 433MHZ TRANSCEIVER SWITCHES
This project details a 433MHz RF communication system using a PIC16F88 microcontroller to control high-power devices like water pumps. The handheld transmitter operates up to 200 meters, significantly exceeding standard commercial ranges, and supports switching loads up to 2500W. It features 16 selectable encoders to manage up to 10 remote units simultaneously with clear on/off status indicators and error detection capabilities.
Parts used in the PIC16F88 RF Remote 433MHz Transceiver Switches:
- PIC16F88 Microcontroller
- 433MHz RF Transceiver
- UHF Remote Mains Switch
- Handheld Controller Unit
- 9V Battery Supply
- Switching Circuit
- Encoder Selection Module (16 selections)
- Transmit Indicator LED
- Transmit Error Indication LED
RF communication system operating with a switching circuit controlled by the water pump 1000 watts of project files are all sources. if you want to switch devices rated over 1000W or control water pumps, then you need the UHF… Electronics Projects, PIC16F88 RF Remote 433MHz Transceiver Switches “microchip projects, microcontroller projects, pic assembly example, pic16f88 projects,
RF communication system operating with a switching circuit controlled by the water pump 1000 watts of project files are all sources.
if you want to switch devices rated over 1000W or control water pumps, then you need the UHF Remote Mains Switch described here. It can switch devices rated at up to 2500W over a range of up to 200m. That’s 10 times the range typically available from the low-cost commercial units
Controls the UHF Remote Mains Switch Up to 10 UHF Remote Mains Switch units can be controlled 16 encoder selections 200m range On/off switching Handheld operation 9V battery supply Transmit indicator Transmit error indication

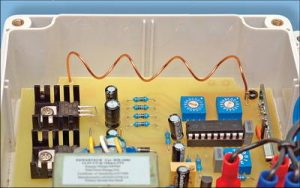

PIC16F88 RF REMOTE CIRCUIT
Source: http://www.siliconchip.com.au/cms/A_109919/article.html
PIC16F88 pic assembly source code RF Remote 433MHz Transceiver PCB schematic Alternative link:
FILE DOWNLOAD LINK LIST (in TXT format): LINKS-2625.zip
Source: PIC16F88 RF REMOTE 433MHZ TRANSCEIVER SWITCHES
- What is the maximum power rating this system can switch?
The system can switch devices rated at up to 2500W. - How far does the UHF Remote Mains Switch operate?
It provides an operating range of up to 200 meters. - Can this system control multiple remote units at once?
Yes, up to 10 UHF Remote Mains Switch units can be controlled. - Does the project support controlling water pumps?
Yes, it is designed to control water pumps and devices over 1000W. - What type of microcontroller is used in the circuit?
The circuit uses the PIC16F88 microcontroller. - How many encoder selections are available for device addressing?
There are 16 encoder selections available. - What power source does the handheld unit require?
The handheld operation requires a 9V battery supply. - Does the system provide feedback on transmission status?
Yes, it includes transmit indicator and transmit error indication features.
