I made the Low Cost IC Test Clip for ICSP of PIC Microcontrollers.

Low Cost IC Test Clip for PIC ICSP

http://neo-sahara.com/wp/ic_test_clip

Step 1:

Step 1

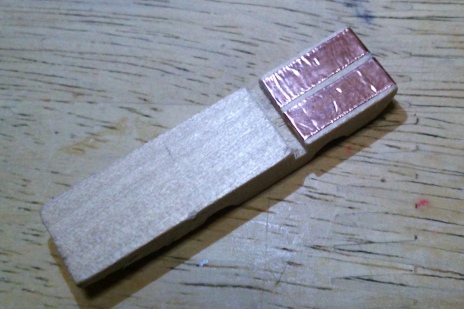

Step 2:

Step 2

Put the copper tape on the cloth peg and cut the tapes as 2.54mm pitch.

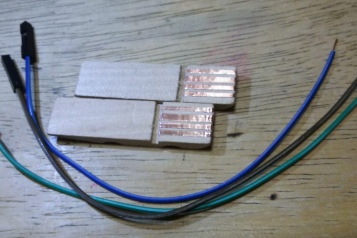

Step 3:

Step 3

Solder cables.

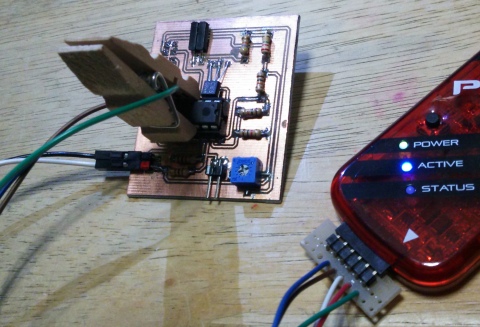

Step 4:

Step 4

Use like this pictures.

http://neo-sahara.com/wp/ic_test_clip

Source: Low Cost IC Test Clip for PIC ICSP
