PIC18F2550 PROJECTS TEST AND DEVELOPMENT BOARD

PIC18F2550 PIC18 series are popular in handy for a trial modification circuit. LCD and GLCD tests done 6-channel ADCs 10’s USB connection and has an additional power supply input schema, PCB, parts list and shared with the sample application testing software

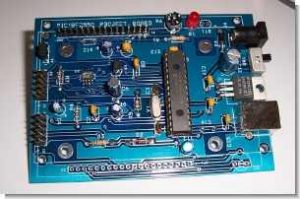

The new PIC18F2550 Project Board was designed as the development platform for student projects.

The board features

MCU: PIC18F2550 with external xtal,
ADC: one channel 0-2.5V sigma-delta converter, Linear Technology LTC2400/LTC2420,
6-channal 10-bit ADC 0-5V,
Display: Two connectors for text LCD or GLCD,
USB: onchip USB port with type B connector,
Power supply: onboard low dropout regulator, rechargeable battery,
Code programming: 10-pin header for In Circuit Loader.

FILE DOWNLOAD LINK LIST (in TXT format): LINKS-8356.zip

Source: PIC18F2550 PROJECTS TEST AND DEVELOPMENT BOARD
