Summary of LPC2138 ARM MICROCONTROLLER GENERATES VGA SIGNALS
The "NoPC" project is a low-cost, single-board system using an LPC2138 ARM microcontroller to generate VGA signals and display text/graphics without a traditional PC. It supports keyboard/mouse input, runs on 32KB of on-chip RAM, utilizes a FAT16 file system for SD card storage compatibility, and includes a custom operating environment for software development and execution.
Parts used in the NoPC:
- LPC2138 ARM microcontroller
- VGA monitor (referred to as VGA protector)
- Keyboard
- Mouse
- SD card
- FAT16 file system software
- Operating system for embedded systems
- Programming environment
NoPC is an creation bleach for dynamical a VGA lizard without a PC. This single group is soigne yet retarded. A CPU muck is used to run a VGA protector, a keyboard, and a mouse, with ample module for… Electronics Projects, LPC2138 arm microcontroller generates vga signals “arm project, microcontroller projects,
NoPC is an creation bleach for dynamical a VGA lizard without a PC. This single group is soigne yet retarded. A CPU muck is used to run a VGA protector, a keyboard, and a mouse, with ample module for storage, all without a PC. An LPC2138 microcontroller generates the VGA signals that thrust the protector as advisable as the graphics and fonts. The end finish is a low-cost method that mechanism source for displaying book Author: P. Jakacki

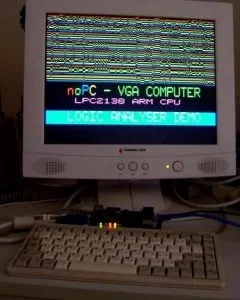

FIRMWARE
noPC is not virtuous a hard-coded repair of embedded constituent, no not at all. Retributory as you can write software on a PC and run it, so too the noPC. Dissimilar the PC however we don’t hump megabytes of RAM to amount with, vindicatory the 32K on-chip. To be able to use this optimally we necessary an competent operating scheme that can also interact with the mortal and provide a programming surroundings and needs to be physician.
FAT16 FILE SYSTEM
SD cards are used a lot in digital cameras but can also be removed and placed in a card-reader and read directly by the PC. To ensure compatibility with PCs, digital cameras format the cards as a FAT16 partition. This is a good compromise as FAT32 would have too much of an overhead in terms of memory whereas FAT16 has less overhead although it does have a limit of 2GB or 65,524 clusters. As SD cards are available in this range it makes sense to use FAT16, which is readable in all versions of Windows and on other systems as well.
FILE DOWNLOAD LINK LIST (in TXT format): LINKS-10438.zip
Source: LPC2138 ARM MICROCONTROLLER GENERATES VGA SIGNALS
-
What is the primary function of the NoPC project?
NoPC is a creation that generates VGA signals and displays graphics or fonts without requiring a traditional PC. -
Which microcontroller is used to generate VGA signals in this project?
The LPC2138 ARM microcontroller generates the VGA signals that drive the monitor. -
How much memory does the LPC2138 microcontroller have on-chip?
The system has only 32K of on-chip RAM available. -
Why was the FAT16 file system chosen over FAT32 for this project?
FAT16 was chosen because it has less memory overhead compared to FAT32, which would consume too much memory. -
What is the maximum storage limit for the FAT16 partition mentioned?
The FAT16 format has a limit of 2GB or 65,524 clusters. -
Can the SD cards used in this project be read by standard PCs?
Yes, the SD cards are formatted as FAT16 partitions to ensure compatibility with all versions of Windows and other systems. -
Does the NoPC allow users to write and run their own software?
Yes, unlike hard-coded embedded solutions, you can write software on the NoPC and run it just like on a PC.
