Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to introduce its extremely compact fanless embedded system, the eBOX560-52R-FL. This palm-sized embedded system is powered by the onboard Intel® Core™ i5-8365UE or Intel® Celeron® 4305UE processors (codename: Whisky Lake-U). It provides high-performance, power-efficient, and abundant I/O interfaces in a compact device. The eBOX560-52R-FL is highly suitable for space-constrained applications with strict performance requirements such as industrial equipment computers, in-cabinet equipment integration, collaborative robots, and more.
Axiomtek’s eBOX560-52R-FL is designed to provide customers with flexible, convenient, and simplified solutions for industrial and embedded applications. The fanless yet low-power embedded system can operate under wide temperatures ranging from -10°C to 50°C with 0.7 m/s airflows and endure up to 50G shock and 3Grms vibration. Moreover, it features two independent 4K Ultra HD displays through its DisplayPort++ and HDMI for multi-display applications,” said Janney Lee, a product manager of Product PM Division at Axiomtek. “Its compact size, excellent computing power, and ability to function in harsh environments making it ideal for diverse industrial applications such as factory, machine, and logistics automation, station gate controls, and ticket vending machines.

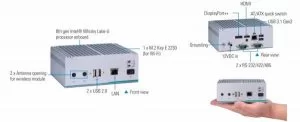

The eBOX560-52R-FL has one 260-pin DDR4-2400 SO-DIMM slot with up to 32GB of system memory. The Intel® Whisky Lake-U-based embedded system adopts versatile I/O interfaces including two RS-232/422/485 ports, two Gigabit LAN ports, two USB 3.1 Gen2 ports, two USB 2.0 ports, one HDMI, one DisplayPort++, one AT/ATX quick switch, and two antenna openings. For extra expansions, the fanless box PC supports one M.2 Key E 2230 slot for Wi-Fi module and one 2.5″ SATA HDD drive bay for additional storage. It has one screw-type 12V DC power input connector with over-voltage protection (OVP), under-voltage protection (UVP) and short current protection (SCP). Its flexible mounting options include wall mount, VESA mount and DIN-rail mount. It also supports Axiomtek’s AMS.AXView software to help users remotely monitor and manage connected devices. For operating systems, it supports Windows® 10 IoT and Linux..
