Summary of MICROCHIP INTRODUCES HIGH-SPEED MODE I2C SERIAL EEPROM WITH 128-BIT SERIAL NUMBER
Microchip’s 24CS512 is a 512-Kbit (64K x 8) I2C serial EEPROM supporting high-speed I2C at 3.4 MHz, offering faster data rates, wide voltage range (1.7V–5.5V), enhanced software and hardware write protection, a factory-programmed 128-bit serial number, ECC, and up to eight devices on one bus for consumer and industrial nonvolatile storage.
Parts used in the 24CS512 Project:
- 24CS512 I2C Serial EEPROM (512 Kbit, 64K x 8)
- I2C two-wire bus (SDA, SCL)
- VCC power supply (1.7V to 5.5V)
- Ground (GND)
- Hardware Write-Protect pin connection
- Optional pull-up resistors for I2C lines
- Microcontroller or I2C master device
- Optional ESD/protection components (recommended for bus)
- PCB and connectors for wiring and mounting

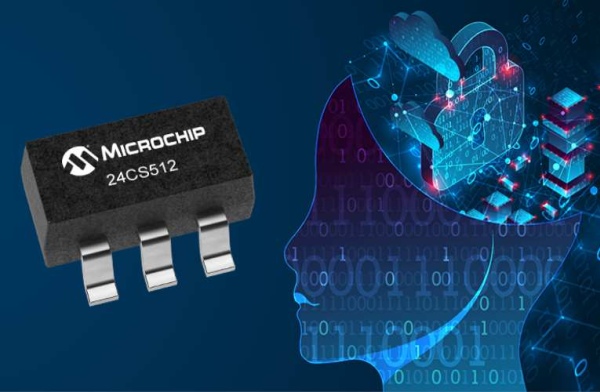

Microchip Technology has released 24CS512, the first commercially available I2C Serial EEPROM with support for 3.4 Mbit/s data rates. This high-speed I2C EEPROM is 3 to 4 times faster than the existing EEPROMs available in the market. It offers high-speed mode operation, software write-protection and factory programmed serial numbers.
The 24CS512 I2C Serial EEPROM provides 512 Kbits of Serial EEPROM, utilizing an I2C (two-wire) serial interface with high-speed mode capability. The device is organized as 65,536 bytes of 8 bits each (64 Kbytes) and is optimized for use in consumer and industrial applications where reliable nonvolatile memory storage is essential. It allows up to eight devices to share a common I2C (two-wire) bus and is capable of operation across a broad voltage range (1.7V to 5.5V).
This high-speed mode I2C serial EEPROM expands the available options for meeting complex design criteria. The device also contains a Configuration register, which allows the write protection behavior to be configured for legacy hardware write protection or enhanced software write protection which allows the user to protect any of the eight independent 64-Kbit zones.
Product Features
- 64K x 8 (512 Kbit)
- 2-Wire Serial Interface, I2C™ Compatible
- 3.4MHz High Speed Mode Capable
- Operating voltage 1.7V to 5.5V
- Pre-programmed 128-bit serial number
- User-programmable, lockable 128-byte ID page
- Enhanced Software Write Protection
- Hardware Write-Protect Pin
- Built-in Error Correction Code (ECC) Logic
- Page Write Time 5 ms Max.
- Standby current 1 uA, max.
- Cascadable up to Eight Devices
- Pb-Free and RoHS Compliant
- Factory Programming Available
Read more: MICROCHIP INTRODUCES HIGH-SPEED MODE I2C SERIAL EEPROM WITH 128-BIT SERIAL NUMBER
- What is the storage capacity of the 24CS512?
The 24CS512 provides 512 Kbit organized as 64 Kbytes (65,536 bytes of 8 bits each). - What I2C speed does the 24CS512 support?
It supports high-speed mode up to 3.4 MHz. - What voltage range can the 24CS512 operate at?
The device operates across a voltage range of 1.7V to 5.5V. - Can multiple 24CS512 devices share the same I2C bus?
Yes, up to eight devices can share a common I2C bus. - Does the 24CS512 include write protection features?
Yes, it offers enhanced software write protection, a hardware Write-Protect pin, and configurable write-protection behavior via a Configuration register. - Is there a factory-programmed serial number on the 24CS512?
Yes, it includes a pre-programmed 128-bit serial number. - Does the 24CS512 provide error correction?
Yes, it includes built-in Error Correction Code (ECC) logic. - What is the maximum page write time for the 24CS512?
The page write time is specified as 5 ms max. - Is the 24CS512 compliant with environmental regulations?
Yes, it is Pb-Free and RoHS Compliant.
