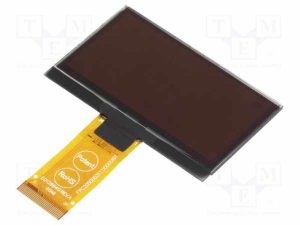

Summary of EA W128064-XALG COMPACT LOW-POWER OLED DISPLAY
Display Visions’ 0.84″ 96×16 yellow OLED module offers a compact, low-power monochrome solution with an integrated controller, 2000:1 contrast, 10 µs response, >160° viewing, and operation from -40°C to +80°C. It supports I²C and SPI variants, is RoHS/CE/REACH compliant, and can be evaluated with the EA 9781-USB board and a free simulator for design work.
Parts used in the EA W096016-XALW / EA W096016-XBLW Project:
- Display Visions 0.84" 96 x 16 yellow OLED module
- SSD1306B controller (built into module)
- EA 9781-USB evaluation board
- EA W096016-XALW module (I2C-Bus interface)
- EA W096016-XBLW module (I2C-Bus and SPI interface)
- Stamp soldering connection or ZIFF connector
- Free simulator tool from Display Visions
Display Visions’ 0.84″ 96 x 16 OLED display is ideal for small, compact low-power applications
Display Visions’ yellow OLEDs come packaged as a complete module that includes all required logic at only a 1.34 mm thickness. With a built-in controller, 2000:1 contrast ratio, 10 µs response time, viewing angles greater than 160°, and the ability to withstand harsh environments due to its extreme temperature range of -40°C to +80°C, these displays will offer any industry an upgrade to their current monochromatic character application.
All OLED displays can be evaluated using the EA 9781-USB evaluation board, and a free simulator tool can be downloaded to start the design process.
Features
- 0.84″ low-power OLED (15 mA typ.)
- Temperature range: -40°C to +80°C
- 96 x 16 dots
- Bright white content with unlimited viewing angle
- Includes SSD1306B controller
- EA W096016-XALW: I²C-Bus interface
- EA W096016-XBLW: I²C-Bus and SPI interface (3- and 4-wire)
- Fast response time (10 µs) even at -40°C
- Connection by stamp soldering or ZIFF connector
- RoHS, CE, and REACH compliant
Read more: EA W128064-XALG COMPACT LOW-POWER OLED DISPLAY
- What is the resolution of the display?
The display resolution is 96 x 16 dots. - What controller is included with the module?
The module includes the SSD1306B controller. - What interfaces are available for these modules?
EA W096016-XALW provides an I2C-Bus interface; EA W096016-XBLW provides I2C-Bus and SPI interfaces (3- and 4-wire). - What is the operating temperature range?
The temperature range is -40°C to +80°C. - How much current does the display typically draw?
The low-power OLED typically draws 15 mA. - What is the contrast ratio and response time?
The display has a 2000:1 contrast ratio and a 10 µs response time. - Can the display withstand harsh environments?
Yes, it can withstand harsh environments due to its extreme temperature range of -40°C to +80°C. - How can I evaluate the display?
All OLED displays can be evaluated using the EA 9781-USB evaluation board and a free simulator tool can be downloaded. - What connection options are available for mounting?
The display supports connection by stamp soldering or a ZIFF connector. - Is the module compliant with regulatory standards?
Yes, it is RoHS, CE, and REACH compliant.
