Autonomously Hovering Quadcopter

We designed, constructed and tested an autonomous quadcopter that used an IMU to control its attitude and a radio to transmit data to a controller, which we also built. The project focused on making the quadcopter as autonomous as possible, so only high level commands such as flight time are sent from the controller to the quadcopter. A 3D-printed chassis houses all of the quadcopter electronics. The four motors are controlled by an off-the-shelf electronic speed controller (ESC) which receives PWM signals from the PIC32 microcontroller. A PID controller reads IMU data to control the quadcopter’s attitude, ensuring stable, level flight. The user can send commands using a potentiometer and switches on the controller, and can receive IMU data from the quadcopter in real time.

High Level Design


The quadcopter project interested us because of our previous experience building flying things. Stewart builds remote control airplanes on the Cornell Design/Build/Fly project team and because of Thinesiya’s RF communications experience and Yijia’s interest in controls. We were also interested in the autonomous aspect of the project. From the beginning we wanted the quadcopter to stabilize and fly itself with only high-level instructions from the flight controller.

We simplified our idea to increase the project’s chances of success. We decided to build a small quadcopter capable of receiving a start signal, taking off and controlling its attitude, hovering, and landing. Some parameters could be tuned with the radio, such as the flight time of the quadcopter.

Mathematical Background

The PID controller set the PWM on-time based on the difference between the desired angle and the current angle measured by the ADC, as well as the derivative and integral of this quantity. The control signal which determines PWM on-time is the sum of three terms:

1) The proportional term, the proportional gain factor K_p multiplied by the difference between desired angle and currently measured angle (angle error).

2) The derivative term, the derivative gain factor K_d multiplied by the derivative of the angle error.

3) The integral term, the integral gain factor K_i multiplied by the integral of the angle error.

Design Overview

A few initial calculations and tests determined the feasibility of the project. For ease of testing we chose to make our quadcopter as small as possible, just big enough to carry the PIC32 microcontroller and associate electronics. The mass estimate in Table 1 predicts a total mass for the quadcopter of 0.348 kg.

Estimated Quadcopter Mass Breakdown

Component Quantity Unit mass [kg] Total mass [kg]
Chassis 1 0.05 0.05
Motors 4 0.01 0.04
Batteries 1 0.08 0.08
Propellers 4 0.005 0.02
Motor controller 1 0.02 0.02
Small board 1 0.01 0.01
IMU 1 0.005 0.005
Radio 1 0.005 0.005
Motor Wires 20 0.001 0.02
Other Wires 20 0.001 0.02
Nuts/bolts 20 0.001 0.02
Margin 20% of total 0.058
Total: 0.348

The chosen motor, battery and propeller combination must therefore be able to lift this mass with a thrust to weight ratio greater than 1. We found several motors weighing around 10g that met this requirement (further details in the hardware design section), so building a quadcopter of this size seemed feasible.

Hardware/Software Tradeoffs

The major constrain for the drone is between the lift power and its weight. We want to minimize the weight by reducing the unneccesary hardware and use the battery with higher voltage within the limit. The drone reads from IMU to adjust the attitude so that it is in banlance. the IMU reading is done in the Interrupt Servie Routine, the frequency for the program to enter the ISR is also the constrain for control as we need to know the IMU data as faster as we can, while the time length of ISR will increase as more functions such as radio transmit is added into the ISR

Hardware Design

Hardware Selection

We chose to use a brushless DC motor due to the prevalence of these motors in the world of RC aircraft and drones. This allowed us to choose from a wide variety of off-the-shelf controllers made to control these motors for small aircraft applications. We looked for a motor that minimized size and weight but still provided enough power for the quadcopter to take off. The DYS BE1104 motor was a good candidate because of its small size and weight (11mm diameter and 6g mass). Additionally, since this motor is frequently used for small aircraft, it has documented test data with particular propellers and batteries. The data shown below is from, a website about model aircraft and drones.

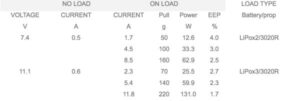

Table 2: Test data for the DYS BE1104 brushless DC motor

Based on the data in Table 2 we chose to use a 3020R propeller which has a 3-inch diameter. We bought both a 2-cell 7.4V LiPo battery and a 3-cell 11.1V LiPo battery to test with. With our quadcopter weight estimate of 348g, it would take at least 4.5A at 7.4V or 5.4A at 11.1V to take off. This allowed us to size the batteries for reasonable flight times. At 4.5A per motor (18A total), a flight time of 1 minute requires a 7.4V battery with a capacity of 112.5mAh. We bought a battery with 450mAh to give some safety factor for current draw and to avoid a large depth of discharge, increasing the battery life. The best 11.1V LiPo we could find that fit our weight budget had a capacity of 350mAh. Both batteries had a discharge coefficient of 20C, which seemed qualitatively sufficient given prior experience using 20C LiPo batteries to fly model aircraft with current draws of up to 30A. If we were more concerned about the longevity of the batteries, more analysis could choose an optimal C rating.

Brushless DC motors are typically controlled using an Electronic Speed Controller (ESC). We considered the trade of whether to build a circuit ourselves to do this or buy an off-the-shelf controller. The advantage to building our own circuit was that we would understand exactly what the inputs and outputs of the circuit were, and would be able to control the motors exactly the way we wanted. Past experience with off-the-shelf controllers has shown that they are usually poorly documented, run on obscure firmware with equally poor documentation, and have a lot of logic built in that makes their behavior hard to predict. Many problems with RC aircraft can be traced to misuse of ESCs. Subpar motor performance might be the result of the controller having been accidentally recalibrated by some specific sequence of power cycling that is nowhere to be found in the ESC documentation. Nonetheless, we decided that our circuits experience was insufficient to allow us to build a motor controller well in the allotted time, so we chose to buy an off-the-shelf ESC. Another concern was the size and weight of an off-the-shelf solution, but we were able to find a 4-in-1 ESC that would take 4 PWM signals and control all of the motors at once. We chose a DYS F18A ESC because it was the smallest and lightest 4-in-1 ESC we could find, and 18A per motor is more than sufficient, as per Table 2. Additionally, this ESC is made by the same company as the motors, which decreased the risk of hardware compatibility issues.

Lab 4 used an opto-isolator diode to isolate the PIC32 ground from the motor ground, preventing noise spikes that could damage the PIC32. Figure 1 shows the circuit used in Lab 4.

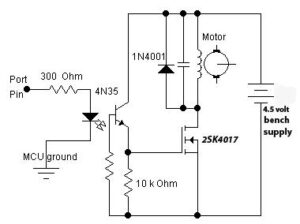

Figure 1: An opto-isolator circuit separates the PIC32 ground from the motor ground.

Initially, we made four copies of this circuit, one for each quadcopter motor, however keeping the grounds completely isolated would have necessitated a separate power source for the PIC32, and we thought it likely that the ESC would prevent any spikes on on its signal ground (where it received PWM signals) or its 5V ground (where it powered the PIC32. We removed the opto-isolator circuits and after some changes to the quadcopter’s operation we avoided noise spikes (more details in the Results section).

MPU-6050 IMU

We choose to use the 6050 IMU to measure acceleration and gyroscope readings for our PID. This is a popular IMU used by many projects before ours in ECE 4670, which is the main reason we choose to use this specific model. The PIC32 used I2C to communicate with the IMU. The library that we used, which was created by a group from three years ago, allowed us to set up the I2C standard and read in the three axis scceleromintor and gyroscope data.

Before integrating the IMU with the PID algorithm, we tested to see how well the IMU works and become familiar with the functions included in the IMU. The following images shows the wiring diagram for the IMU to the PIC32. AD0 was set to ground, because were using 0x68 as the device address (opposed to 0x69 which requires AD0 to be high).

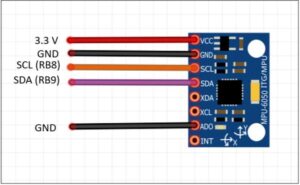

Figure 2: IMU wiring.

At the start we had trouble establishing an I2C connection and receiving data from the IMU. The problem was caused by faulty connections to the bread board. Our solution was to solder the IMU onto a perforated board. Also RA1 doesn’t work on the PIC32 when I2C is being used. The figure shown below shows a screenshot of the data line (top) and the clock (bottom) of the I2C connection.

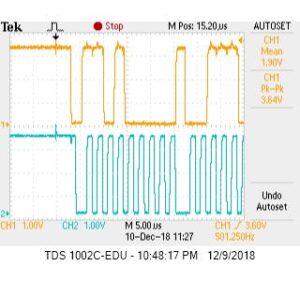

Figure 3: PIC32 and IMU I2C connection on Oscilloscope.

To retrieve data from IMU, we use PIC32 I2C library with the upper level i2c read and write helper functions. IMU is initially in sleep mode, we set the sleep mode to 1 to activate the IMU and IMU will start to store the measurement into the the data register. We use the three gyro values on our drone. Each measurement value is divided into two bytes stored in two registers. We read char type data for lower byte and higher btpe then concatenate them to an 32-bit integer. To get a more accurate gyro data, we sample the gyroscope over an extended period and average it in order to find and substrat the bias.We read the imu inside interrupt service routine to get the gyro rate of the drone and feed it into PID controller to adjust the drone’s position.

nRF24L01+ Radio

We predicted that when we tune our PID algorithm, it would serve helpful to have a remote control that would allow us to tune and start the drone remotely. Since we are using the small board on the drone, we thought it will be very helpful to downlink the IMU data as well, so that we can confirm that the IMU’s reading and check the PID controls. The following image is a wiring diagram for the radio to the Pic32 (communication was over SPI). The radio that was mounted to the big board, which served as our base station used RB8 and RB9 respectively as CE and CSN, while we changed tho RB3 and RB2 respectively,because we were using RB8 and RB9 for communication for I2C to the IMU.

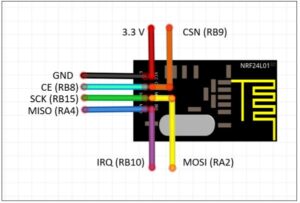

Figure 4: nRF24 wiring (on the small board CE is RB3 and CSN is RB2).

One of the two radios was placed on our base station, which included a PIC32 mounted on a Big Board with the TFT screen, so we can see the downlinked data, as shown in the image below. We also included a 10k potentiometer that was used to choose the desired flight time for the quadcopter to hover for. There is also a switch on the board which will send a start signal to the quadcopter which will signal it to start the PID algorithm and lift off.We mounted the other nRF24 on the drone and used it to transmit IMU data, which was measured in the ISR, during the PID algorithm.

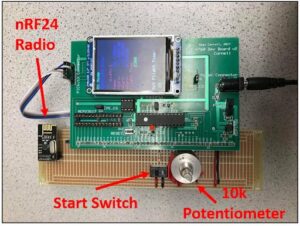

Figure 5: Basestation.

Mechnical Layout

Important considerations for mechanical layout included minimizing weight and balancing the quadcopter so that its center of mass was positioned at the center of the four motors, making attitude control easier. The 3D-printed chassis was designed with simplicity and weight savings in mind. It was sized based on the 3-inch propeller diameter to give ample room for the electronics and battery in the center. The chassis is two-dimensional, meaning that it can also be lasercut instead of 3D-printed. We wanted to keep this option open in case we decided to use acrylic, which is stronger than 3D-printed ABS plastic, or balsa wood, which is lighter. In the end the 3D-printed version worked fine so we didn’t change the design.

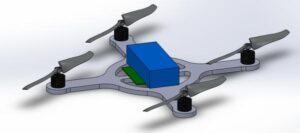

Figure 6: Preliminary CAD model of quadcopter showing the chassis, motors, propellers, battery and electronics.

Electrical Layout

Most off-the-shelf ESCs take in a servo pulse which consists of a 50Hz PWM signal with 1-2ms pulses. A 1-ms pulse corresponds to minimum throttle (motor does not spin) and a 2ms pulse corresponds to full throttle (maximum motor speed). The ESC converts this servo pulse into PWM signals that it uses to control MOSFETs arranged in a bridge (shown in Figure 7). Each pair of power MOSFETs controls the switching of one phase of the 3-phase brushless DC motor. The DYS F18A ESC we used has four circuits like the one shown in Figure 7, one for each motor. Each circuit accepts an independent PWM signal but all are powered by the same battery.

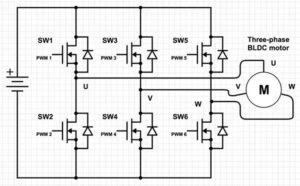

Figure 7: 3-phase brushless DC motor control using MOSFETs, diagram from Digikey .

A secondary function of the ESC is to step the battery voltage down from 7.4V or 11.1V and provide a 5V output. On RC aircraft this is used to power the receiver, but we used it to power the PIC32. Figure 8 shows a schematic of the motor control used in this project.

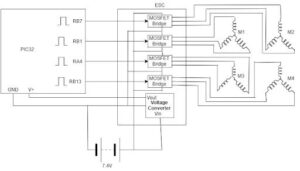

Figure 8: Motor control using an electronic speed control with a built-in step down voltage converter.

Software Design


The software part design is divided into ground station design and the drone control design. The ground station runs on the big board, it has two functions, the first function is to send the command to the drone. There are two commands: start signal which is controled by a toogle switch and hovering time setting, which is controled by the potentiometer. The second function is to receive the telemetry data from drone and display it to users. On the other hand, the drone flight controller includes the PID algorithm that controls the attitude of the drone by changing the PWM of four motors, the radio mode transaction that receive the start information from the ground then send imu back to ground, and the IMU reading part via I2C. drone flight controller is running on the small board.

The radio on the drone starts off at receive mode (RX mode), waiting for the start signal. The start signal contains the flight time which is measured in the number of clock cycles, where each clock cycle is 2 msec. The radio on the base station, starts off in transmit mode, awaiting the user to toggle the switch up. As soon as the switch is toggled, the flight time is transmitted and the base station goes into RX mode, awaiting the IMU data from the drone. Upon receiving the start signal, the drone switches into transmit mode. It downlinks the IMU data as well as the flight time, which are printed on the TFT screen of the basestation. The drone also transmits a known sequence, to the base station to notify when there is a new round of data coming, to ensure that both radios are synchronized.

Motor Control

The quadcopter determined its attitude by integrating gyro data in two axes to get two angle measurements,




Both PID control and IMU reading occured in an ISR. After reading the gyro, angle was determined by euler integration:


An initial gyro offset is removed when the IMU is set up by taking two gyro readings 100ms apart and averaging them. This procedure is done only once, in the main loop when the quadcopter is sitting still on the ground prior to takeoff.

We employed several methods to compensate for gyro drift. First, we reset the angle reading whenever the gyro data changes sign. Second, a complementary filter uses accelerometer data to correct the gyro readings. 98% of the angle reading comes from the previously mentioned gyro data integration and 2% comes from accelerometer determination of attitude in relation to the direction of gravitational acceleration.


As these equations show, rotating around the x-axis results in a vector along the y-axis and rotating around the y-axis results in a vector along the x-axis. The complementary filter uses the more accurate gyro readings to produce angle measurements that are accurate in the short term, but uses the accelerometer readings which do not drift to measure the angle in the long term.

Two PID controllers run independently, one for x-axis rotation and one for y-axis rotation. Both controllers work to maintain the angle of the quadcopter at takeoff. The initial angle is taken as


and during the flight the controller tries to drive the angle back to zero. Figure 9 shows a block diagram of the PID control for each axis.

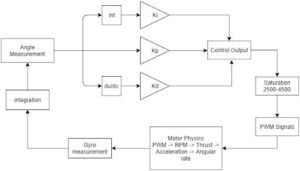

Figure 9: Block diagram for single-axis PID control.

The control signal for each axis is generated as shown in Figure 9:


We converted control signalst to PWM signals by assigning two motors to each axis and increasing or decreasing their PWM signals in proportion to the control signal on that axis:


In these equations M0 denotes a setpoint where the motors should stay if the quadcopter is close to an angle of zero. This setpoint should be high enough so that the quadcopter can still lift off if all the motors run at that speed. We ramp the setpoint up and then down again at takeoff and landing to make flight smoother and to prevent noise spikes associated with rapid motor acceleration. The setpoint starts at zero and ramps up to 1500 during flight. Limiting the PWM signals to the range 2500-4500 cycles (1ms servo pulse to 1.8ms pulse) there is a 1500 cycle range on each side of the setpoint for the PID controller to work with.



The PIC32 has the ability to control a motor with an ESC. We borrowed an ESC, and motor of similar type to the one we hoped to use on the quadcopter and compared the performance we got from sending a PWM signal from the PIC32 versus plugging the ESC into a model airplane receiver and throttling up a controller. Initially the ESC would not respond to the servo pulse generated by the PIC32 because we had set the low threshold at a 0.8ms pulse to ensure that the motor didn’t spin when we turned the PIC32 on. As it turns out, the ESC needs at least a 1ms pulse to recognize that it is receiving a signal, at which point it will turn on and detect that a motor is connected. Another issue with jittery motors and inconsistent motor speeds turned out to be due to the trimpot we were using to control the width of the servo pulse. The pot was jumpy and would cause the pulse to change unpredictably.

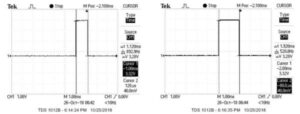

Figure 10: Low (left) and high (right) servo pulses measured from a model airplane receiver and replicated with PIC32 PWM.

After verifying that we could control a motor with PWM, we bought some motors and a 4-in-1 ESC. Bad wiring and loose solder connections led to a lot of debugging once we had the ESC and motors connected. Figure 11 shows a test setup using a model airplane receiver to test the motors and ensure that the connections were stable. The ESC we bought had several undocumented features that led to further debugging. If the ESC powered on and immediately received a servo pulse greater than 1ms in width it would not power the motors, presumably to protect against someone turning on their aircraft with the throttle stick high. Additionally, power cycling the ESC while the throttle is high causes it to enter “calibration mode” which precipitates all sorts of unexpected behavior, including motors spinning slower than usual. Re-calibrating all motors at the same time by power cycling the ESC at high throttle with all motors attached, then bringing throttle to zero and waiting for the ESC to respond fixed this issue whenever it occured.

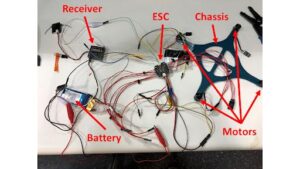

Figure 11: Motor and ESC test setup

While testing without the opto-isolators we found that high motor speeds or fast motor acceleration created noise spikes that caused the PIC32 to reset. To prevent this, we limited the servo pulse to 1.8ms max (90%) of max motor speed and ramped the PWM setpoint slowly ( < 10 PWM cycles per ISR cycle). This problem still poses a serious limitation to the design, since a disturbance torque caused for example by wind could cause the PID controller to request a large change in motor speed and reset the PIC32. A more robust design would either power the PIC32 from a separate battery and reintroduce the opto-isolator circuits, or buy a better ESC with its battery ground isolated from the 5V out ground and signal ground.

For the first stage of PID control testing and tuning we powered two motors at a time and controlled just one axis of rotation. We held the quadcopter steady along one axis and displaced it from horizontal to observe how well it recovered. Initially we had trouble integrating the gyro data and stabilizing the quadcopter due to the low frequency of the servo pulse control (50Hz). We increased the frequency to 500Hz even though the ESC was only rated for 50Hz, and although the threshold for motors turning on decreased slightly and motor speed overall increased, we saw no significant adverse effects. 500Hz is the maximum frequency because a 2ms servo pulse must have a period greater than 2ms. We used 1.8ms as our max pulse width so 500Hz worked fine.

After the control frequency increased to 500Hz the quadcopter was able to successfully integrate gyro data to obtain angle measurements and control its angle at a high enough bandwidth to fly reasonably level

We chose our initial PID controller gains so that for each axis at an angle of about 30 degrees off horizontal the servo pulse on one motor would be at max (1.8ms) and the servo pulse on the other motor would be at minimum (1ms). We observed the width of the servo pulses on an oscilloscope without the motors connected and tilted the quadcopter to find these gains. This initial estimate proved to be much too high gain, especially proportional gain. Before flight testing, we hung the quadcopter from a string and connected two motors with a lower battery voltage so they would balance the quadcopter but not cause it to take flight. This turned out to not be the best method of testing since the string occasionally got tangled up in the propellers, but it allowed us to see that the best strategy was to use quite low gains (Kp = 10, Kd = 50, Ki = 0.04).

Test Flight Results for Various Gainsets

Controller Gains and Filtering Results of flight
Kp = 1, Kd = 5, Ki = 0 ~10 ft travel from takeoff point
Kp = 10, Kd = 5, Ki = 0 Flipped over and crashed
Kp = 10, Kd = 500, Ki = 0 Flipped over and crashed
Kp = 10, Kd = 50, Ki = 0 ~7ft travel from takeoff point
Kp = 10, Kd = 50, Ki = 0.1 Flipped over and crashed
Kp = 10, Kd = 50, Ki = 0.04 ~5ft travel from takeoff point
Kp = 10, Kd = 50, Ki = 0.04 and complementary filter ~ 2ft travel from takeoff point

We also attempted to control the altitude of the quadcopter but integrating the accelerometer data twice proved to be very unstable, and altitude readings were inconsistent. The position readings drifted so severely that the quadcopter could not tell whether it was at the correct altitude. Additionally, adding these integration calculations as well as the third PID controller to the ISR prevented us from sending radio transmissions because the ISR took such a long time that there was hardly any CPU time to do other things like send transmissions.

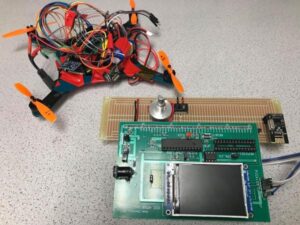

Figure 12: Fully constructed quadcopter and controller


We ensure the safety of our design during the whole development process. The drone is wired with a string to constrain its mobility during the test and the battery state is stricly under supervised. We control the flight time such that the drone will land in the certain range of region. We use RF radio since there might be interference with other RF device. As the radio we use has a relative small range, the interference can be limited by increase the distance between drone system and other noise source. We also try to increase the usability through our design. We create the ground station so that user can trigger the drone remotely with a switch and be able to control the hover time using the potentiometer.


Figure 13: Motor control
