Summary of VD6283TX HYBRID FILTER MULTISPECTRAL SENSOR
STMicroelectronics’ VD6283 is a miniature color sensor (1.83 × 1.0 × 0.55 mm) offering fast, accurate ambient-light and color measurements with per-channel ADC/readout and hybrid color filters. It computes CCT and Lux, supports display brightness management and scene correction, and uniquely extracts light-flicker waveforms from 100 Hz to 2 kHz (including LED square waves) while running ALS operations. The optical BGA module operates from 7 mLux to 30 kLux (green), uses six independent channels, communicates via I2C up to 1 Mbit/s, and runs from a 1.8 V supply across −30°C to +85°C.
Parts used in the VD6283 color sensor project:
- VD6283 hybrid filter multispectral sensor module (1.83 mm x 1.0 mm x 0.55 mm)
- Optical BGA package with 6 balls (reflowable)
- Cover glass (operates with cover glass on top)
- Photodiodes (high-performance photodiode design)
- Hybrid color filters (red, green, blue, IR, clear, visible)
- Individual ADCs and readout circuits for each color channel
- I2C interface (supports Fast mode plus up to 1 Mbit/s)
- 1.8 V power supply
STMicroelectronics’ color sensor with advanced light flicker extraction is fast and accurate thanks to an individual ADC

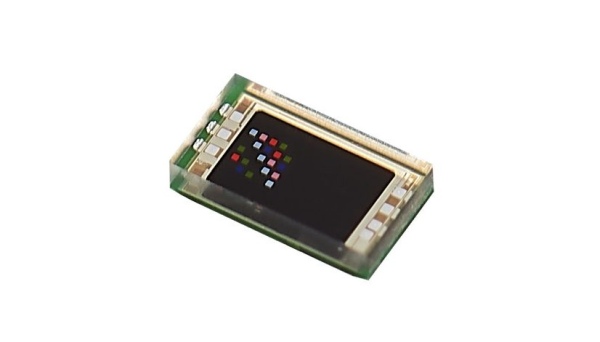

STMicroelectronics’ VD6283 (1.83 mm x 1.0 mm x 0.55 mm) is a color sensor with advanced light flicker extraction. Light measurement is fast and accurate thanks to an individual ADC and a readout for each color channel. The VD6283 uses hybrid color filters with precise responses allowing accurate computation of the correlated color temperature (CCT) and Lux information. The VD6283 can be used for display brightness management or scene light correction.
With a patented architecture and a high-performance photodiode design, the VD6283 can extract light flickering frequencies to avoid banding effects on videos or check that they are safe for the human eye. Additionally, the VD6283 is the only sensor able to extract different light flicker waveforms from 100 Hz and 2 kHz, including LED square signals, that can run flicker operations simultaneously with ALS operations.
Features
- Miniature optical module
- 1.83 mm x 1.0 mm x 0.55 mm
- Optical BGA, 6-balls, reflowable package
- Operates with cover glass on top
- ALS operation with 6 independent channels (red, green, blue, IR, clear, and visible)
- Advanced hybrid filters with high photocount response
- Operating conditions: 7 mLux to 30 kLux (green channel)
- Light flicker extraction
- Innovative readout architecture to extract AC light flicker signal
- From 100 Hz to 2 kHz frequency detection, sine or square wave
- Software driver provided by ST
- I²C interface up to 1 Mbit/s (Fast mode plus)
- 1.8 V power supply
- Operating temperature: -30°C to +85°C
Read more: VD6283TX HYBRID FILTER MULTISPECTRAL SENSOR
- What is the VD6283 used for?
It is used for ambient light and color measurement, computing CCT and Lux, display brightness management, and scene light correction. - How small is the VD6283 module?
The optical module measures 1.83 mm x 1.0 mm x 0.55 mm. - Can the VD6283 extract light flicker while running ALS operations?
Yes, it can run flicker operations simultaneously with ALS operations. - What flicker frequencies can the VD6283 detect?
It can detect frequencies from 100 Hz to 2 kHz, including sine and square waveforms. - How many channels does the VD6283 have?
It has six independent channels: red, green, blue, IR, clear, and visible. - What communication interface does the VD6283 use?
It uses an I2C interface supporting up to 1 Mbit/s (Fast mode plus). - What operating light range does the VD6283 support?
Operating conditions are from 7 mLux to 30 kLux on the green channel. - What supply voltage does the VD6283 require?
It requires a 1.8 V power supply. - What temperature range can the VD6283 operate in?
Operating temperature range is −30°C to +85°C.
