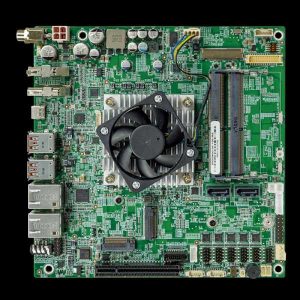

Summary of TKINO-ULT6: A THIN MINI-ITX TIGER LAKE SBC WITH DUAL 2.5GBE AND USB 4.0
IEI launched the tKINO-ULT6, a thin Mini-ITX SBC using 11th Gen Intel Tiger Lake (UP3/E and Celeron) processors, offering up to four 4K displays, dual 2.5GbE, USB 4 (20–40Gbps), USB 3.2 Gen2, DDR4-3200 support, wide 9–36V DC input, M.2 slots for WiFi and storage, and a PCIe x8 Gen4 slot for embedded applications like digital signage and surveillance.
Parts used in the tKINO-ULT6:
- Thin Mini-ITX motherboard (tKINO-ULT6)
- 11th Gen Intel Tiger Lake-UP3 processor (supports ULP E variants and Celeron)
- DDR4-3200 memory
- Dual Intel 2.5GbE LAN controllers/ports
- USB 4 port (20–40Gbps)
- USB 3.2 Gen2 ports (10Gbps)
- HDMI output
- DisplayPort output
- eDP/LVDS connector
- M.2 A key slot for WiFi+Bluetooth
- M.2 M key slot for storage (PCIe x2/SATA)
- PCIe x8 Gen4.0 slot
- Wide-range DC power input circuitry (9V to 36V)
IEI has launched a thin Mini-ITX SBC with the latest 11th Gen Intel® Core™ processors that offer improved performance, power efficiency, and DDR4-3200 memory support.
The new board named tKINO-ULT6 seeks to break the boundaries of performance by bringing cutting edge features and ultimate performance to designs. It is among the first set of thin mini-ITX boards to be based on Intel’s 10nm fabricated 11th Gen Tiger Lake processors and also the second Tiger Lake SBC to come with a USB 4 port following Aaeon’s UP Xtreme i11.
The tKINO-ULT6 offers up to four simultaneous 4K displays, dual 2.5GbE ports, 10Gbps USB 3.2 Gen2 ports on the coastline, and a USB 4 that has a minimum of 20Gbps throughput and a maximum of 40Gbps.
The board also supports the more embedded Tiger Lake ULP “E” Core and Celeron variants. These “E” models are known to have an extended purchase availability and lower base and Turbo frequencies than other named ULP3 siblings without the “E” suffix.
tKINO-ULT6 can be used in a wide variety of applications like smart retail stores, surveillance systems, digital signage, etc.
KEY FEATURES:
- Has a thin Mini-ITX form factor with support for 11th Gen. Intel® Tiger Lake-UP3 processor
- Supports a wide DC input range of 9V to 36V
- Supports up to four independent displays (HDMI, DP, eDP/LVDS, USB4)
- Has a dual Intel® 2.5GbE LAN
- M.2 A key for WiFi+Bluetooth
- M.2 M key for Storage (PCIe x2/SATA), and,
- PCIe x8 Gen 4.0 slot
Read more: TKINO-ULT6 A THIN MINI-ITX TIGER LAKE SBC WITH DUAL 2.5GBE AND USB 4.0
- What processor family does the tKINO-ULT6 support?
It supports 11th Gen Intel Tiger Lake-UP3 processors, including ULP E variants and Celeron models. - Can the tKINO-ULT6 drive multiple displays?
Yes, it supports up to four independent displays via HDMI, DisplayPort, eDP/LVDS, and USB4. - Does the tKINO-ULT6 include USB 4?
Yes, it includes a USB 4 port with a minimum of 20Gbps and up to 40Gbps throughput. - What networking options are available on the tKINO-ULT6?
It provides dual Intel 2.5GbE LAN ports. - What storage and wireless expansion does the board offer?
It has an M.2 A key for WiFi+Bluetooth and an M.2 M key for storage supporting PCIe x2 or SATA. - What power input range does the tKINO-ULT6 support?
The board supports a wide DC input range of 9V to 36V. - Is there a PCIe slot on the tKINO-ULT6?
Yes, it includes a PCIe x8 Gen4.0 slot. - What applications is the tKINO-ULT6 suited for?
The board can be used in smart retail, surveillance systems, digital signage, and similar embedded applications.
