Summary of THE OMNI-2155-CML: TAPPING INTO NEXT GENERATION PERFORMANCE

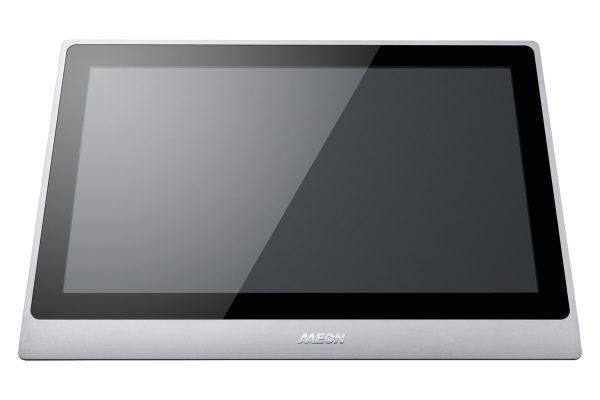

AAEON’s OMNI-2155-CML is a 15.6” industrial touch panel PC powered by 10th Gen Intel Core and Celeron socket-type processors (up to 35W TDP), supporting up to 64GB DDR4. It offers broad expansion including M.2 2280 (M-Key) PCIe 3.0 x4 for NVMe, M.2 2230 (E-Key) for Wi‑Fi/Bluetooth, and a full-size Mini Card slot (PCIe/mSATA via BIOS). Built for industrial use, it features a P-CAP touchscreen (glove-operable option), wide 10–35V input, and reliable operation from 0°C to 45°C.
Parts used in the OMNI-2155-CML:
- 15.6 inch P-CAP LCD touch screen (glove operable option)
- Socket-type 10th Generation Intel Core processors (i3/i5/i7/i9) and Intel Celeron (up to 35W TDP)
- DDR4 memory (up to 64GB)
- M.2 2280 (M-Key) slot (PCIe 3.0 x4) for NVMe SSD
- M.2 2230 (E-Key) slot for Wi-Fi or Bluetooth
- Full-size Mini Card slot supporting PCIe and mSATA configurable via BIOS
- Wide voltage input power system (10 to 35V)
- Cooling and chassis designed for 0°C to 45°C operation
AAEON, a leader in industrial PC solutions, announces their latest industrial touch panel PC, the OMNI-2155-CML. Powered by 10th Generation Intel® Core™ processors (formerly Comet Lake), this innovative solution is able to deliver higher performance, broader I/O features and technological support than previous generations at a lower price point.
The OMNI-2155-CML is the first in the OMNI family of industrial touch panel PC solutions to offer a socket-type processor, allowing for easier maintenance and scalability to meet the performance needs of individual applications. The system utilizes the 10th generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP) combined with up to 64GB of DDR4 memory to deliver greater performance and higher processing speeds than previous generations. These late-generation processors also provide support for a range of vital technologies, fully unlocked with the OMNI-2155-CML.
One of the ways users and developers can take advantage of the capabilities of the 10th generation Intel Core processors in the OMNI-2155-CML is through the system’s broad expansion support. The system features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also delivers M.2 2230 (E-Key) to support a range of functions including Wi-Fi or Bluetooth connectivity. The OMNI-2155-CML is also built with a full-sized Mini Card slot that supports PCIe and mSATA, set via the BIOS.
The OMNI-2155-CML is built from the ground up for industrial applications. The 15.6” LCD touch screen utilizes the P-CAP system and can be configured to be operable with gloves. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.
Read more: THE OMNI-2155-CML: TAPPING INTO NEXT GENERATION PERFORMANCE
- What processors does the OMNI-2155-CML support?
It supports socket-type 10th Generation Intel Core i3/i5/i7/i9 and Intel Celeron processors up to 35W TDP. - How much memory can the OMNI-2155-CML support?
The system supports up to 64GB of DDR4 memory. - Does the OMNI-2155-CML support NVMe storage?
Yes, it has an M.2 2280 (M-Key) slot driven by PCIe 3.0 x4 for NVMe SSDs. - Can the OMNI-2155-CML add Wi-Fi or Bluetooth?
Yes, it provides an M.2 2230 (E-Key) slot for Wi-Fi or Bluetooth modules. - Is there support for Mini Card expansion?
Yes, a full-size Mini Card slot is available and supports PCIe and mSATA set via the BIOS. - What touchscreen technology does the OMNI-2155-CML use?
It uses a projected capacitive (P-CAP) touchscreen that can be configured to be operable with gloves. - What power input range does the OMNI-2155-CML accept?
The unit accepts a wide voltage input from 10 to 35V. - What operating temperature range is supported?
The OMNI-2155-CML is designed to operate consistently from 0°C up to 45°C.
