Summary of RS232 PORT CONTROL BOARD PIC18F452 MICROCONTROLLER
This project describes a control board using the PIC18F452 microcontroller to facilitate serial communication via an RS232 port. The card receives data through the serial interface to manage external devices, featuring two 8-bit digital outputs, two ADC inputs, and two PWM outputs. Additionally, it supports TX output on two serial ports for transmitting information to other connected devices.
Parts used in the PIC18F452 Serial RS232 Control Card:
- PIC18F452 Microcontroller
- RS232 Port
- Control Board
- Gumstix Main Unit
- 2x 8-bit Digital Outputs
- 2x ADC Inputs
- 2x PWM Outputs
- 2x Serial Ports (TX Output)
“PIC18F452 Serial RS232 control port connected card” application Project Sharing section of Article Posted by Hasan Adult thank you to him. Applications written in the C language source code and simulation files are isis. PIC18F452 Serial RS232 port connected… Electronics Projects, RS232 port Control Board PIC18F452 Microcontroller “microchip projects, microcontroller projects,
“PIC18F452 Serial RS232 control port connected card” application Project Sharing section of Article Posted by Hasan Adult thank you to him. Applications written in the C language source code and simulation files are isis.

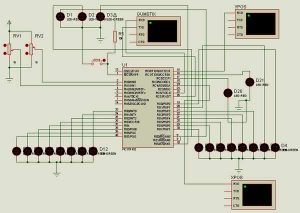

PIC18F452 Serial RS232 port connected to the control board Gumstix main purpose of this card is to provide the outside world, but serial ports to communicate with all the devices used.
This card is based on the information received from the serial port x2 8-bit digital output 2 input ADCs provide PWM output 2. In addition, tx output with two serial ports can send information to other devices.
author Hasan Yetik – PIC18F452 RS232 control card application source files belonging to the;
FILE DOWNLOAD LINK LIST (in TXT format): LINKS-10264.zip
Source: RS232 PORT CONTROL BOARD PIC18F452 MICROCONTROLLER
- What is the main purpose of this control card?
The main purpose is to provide communication with all devices used by connecting serial ports to the outside world. - How does the card process incoming data?
The card is based on information received from the serial port to operate its various outputs. - What digital output capabilities does the card offer?
The card provides two 8-bit digital outputs. - Does the card support analog input conversion?
Yes, the card includes two ADC inputs. - Can the card generate PWM signals?
Yes, the card provides two PWM outputs. - Is it possible to send information to other devices?
Yes, the card has TX output with two serial ports that can send information to other devices. - In which programming language was the application written?
The applications were written in the C language. - What software is used for simulation files?
The simulation files are provided in ISIS format.
