Summary of $149 BEAGLEV IS A POWERFUL AND OPEN-HARDWARE RISC-V LINUX SBC

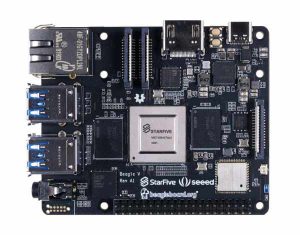

BeagleV is an affordable $149 RISC-V Linux single-board computer developed by BeagleBoard.org, Seeed Studio, and StarFive. It features a SiFive U74 dual-core RISC-V CPU, strong AI and vision accelerators (Vision DSP Tensilica-VP6, NVDLA, Neural Network Engine), 8GB LPDDR4, rich multimedia I/O including 4K video encode/decode and dual ISP, Wi‑Fi/Bluetooth, GbE, multiple USB 3.0 ports, and extensive GPIO and peripheral support—targeted at edge computing and AI applications.
Parts used in the BeagleV:
- SiFive U74 RISC-V Dual core processor (1.5GHz, 2MB L2 cache)
- Vision DSP Tensilica-VP6
- NVDLA Engine (2048 MACs @ 800MHz)
- Neural Network Engine (1024 MACs @ 500MHz)
- 8GB LPDDR4 (2x 4GB LPDDR4 SDRAM)
- MicroSD card slot
- 2.4GHz 802.11b/g/n Wi-Fi 4
- Bluetooth 4.2
- Video decoder/encoder supporting H.264/H.265 up to 4K@60FPS
- Dual ISP channels (each up to 4K@30FPS)
- Audio Processing DSP and sub-system
- 2x MIPI-CSI connectors
- 1x MIPI-DSI (up to 4Kp30)
- 1x HDMI (up to 1080P@30FPS)
- MIPI-CSI TX (video output after ISP/AI)
- JPEG encoder/decoder
- 4x USB 3.0 ports
- 1x Gigabit Ethernet port
- 1x 3.5mm audio jack
- 40-pin GPIO header (28 GPIO, I2C, I2S, SPI, UART)
- TRNG (True Random Number Generator) and OTP support
- DMAC and QSPI support
- 1x Reset button
- 1x Power button
- 5V@3A power supply with USB Type-C
Two reliable parties, BeagleBoard.org foundation, and Seeed Studio have partnered with a leading RISC-V solutions provider, StarFive, to design the most affordable Linux-capable RISC-V SBC called BeagleV. So now, you don’t have to spend several hundred dollars, or even over a thousand dollars to have a complete system that runs Linux on RISC-V hardware.
The $149 BeagleV is a perfect edge computing device with powerful AI performance. The board is equipped with RISC-V U74 dual-core with 2MB L2 cache @ 1.0GHz with 8GB of LPDDR memory, ISP/NNE, PCle 3.0, GbE, and dedicated hardware encoder/decoder supporting H.264 4k@60fps. The processor offers rich and powerful AI features including the Vision DSP Tensilica-VP6 for computing vision, NVDLA engine, and the neural network engine.
Features And Specifications:
- SiFive U74 RISC-V Dual core processor running at 1.5GHz and with 2MB L2 cache
- Highly integrated Vision DSP Tensilica-VP6 for computing vision
- NVDLA Engine (configuration 2048 MACs running at 800MHz – 3.5 TOPS)
- Neural Network Engine (1024 MACs running at 500MHz – 1 TOPS)
- 8GB LPDDR4 (2x 4GB LPDDR4 SDRAM)
- 1x MicroSD card slot (operating system and data storage)
- 2.4GHz 802.11b/g/n Wi-Fi 4
- Bluetooth 4.2
- Video Decoder/Encoder (H264/H265) up to 1 channel 4K@60FPS or 8 channel 1080p@30FPS
- Dual channels of ISP with each supporting up to 4K@30FPS
- Audio Processing DSP and sub-system
- 2x MIPI-CSI
- 1x MIPI-DSI up to 4Kp30
- 1x HDMI support up to 1080P@30FPS
- MIPI-CSI TX support for video output after ISP and AI processing
- JPEG Encoder/Decoder
- 4x USB 3.0 ports
- 1x GbE port
- 1x 3.5mm Audio jack
- 40-pin GPIO header (28 x GPIO, I2C, I2S, SPI, UART)
- TRNG and OTP support
- DMAC and QSPI support
- 1x Reset button
- 1x Power button, and,
- 5V@3A power supply with USB Type-C
Read more: $149 BEAGLEV IS A POWERFUL AND OPEN-HARDWARE RISC-V LINUX SBC
- What processor does the BeagleV use?
The BeagleV uses a SiFive U74 RISC-V dual-core processor running at 1.5GHz with 2MB L2 cache. - How much memory does the BeagleV have?
The board includes 8GB LPDDR4 memory (2x 4GB LPDDR4 SDRAM). - Can the BeagleV run Linux?
Yes, the BeagleV is a Linux-capable RISC-V single-board computer. - What AI and vision accelerators are included?
It includes Vision DSP Tensilica-VP6, an NVDLA engine (2048 MACs @ 800MHz), and a Neural Network Engine (1024 MACs @ 500MHz). - Does the BeagleV support 4K video?
Yes, it supports H.264/H.265 encoding/decoding up to 4K@60FPS and has MIPI-DSI up to 4Kp30 and dual ISPs up to 4K@30FPS. - What wireless connectivity does it offer?
It offers 2.4GHz 802.11b/g/n Wi-Fi 4 and Bluetooth 4.2. - How many USB ports are available?
The board provides four USB 3.0 ports. - Is there Ethernet on the BeagleV?
Yes, there is one Gigabit Ethernet (GbE) port. - What power supply is required?
The board uses a 5V@3A power supply delivered via USB Type-C. - Does the BeagleV include general purpose I/O?
Yes, it has a 40-pin GPIO header exposing 28 GPIO plus I2C, I2S, SPI, and UART.
