Summary of TAKE AI EDGE TO THE PRO LEVEL WITH UP SQUARED PRO
AAEON’s UP Squared Pro is an upgraded UP Squared platform for AI Edge applications, powered by Intel Celeron N3350, Pentium N4200, or Atom E3950 processors. It adds enhanced expandability (three M.2 slots, SATA III, 40-pin HAT), support for 5G modules and Intel Movidius AI accelerators, onboard TPM 2.0, dual Gigabit Ethernet, wide voltage input (12–24V), multiple USB and COM ports, audio I/O, and multi-display video outputs—targeting drones, autonomous robots, smart surveillance, and retail deployments.
Parts used in the UP Squared Pro:
- UP Squared Pro board (UPN-APL)
- Intel Celeron N3350 processor
- Intel Pentium N4200 processor
- Intel Atom E3950 processor
- On-board TPM 2.0 module
- M.2 2230 E-Key slot
- M.2 2280 M-Key slot
- M.2 3042/3052 B-Key slot
- AI Core XM2280 module (Intel Movidius Myriad X VPUs)
- 5G cellular card (supported)
- 40-pin HAT expansion header
- SATA III connectors
- Two Intel i210 Gigabit Ethernet ports
- Audio jack (input and output)
- Three USB 3.2 Gen 1 ports
- Two USB 2.0 headers
- Two COM port headers
- HDMI output
- eDP output
- DisplayPort (DP) output
AAEON, an industry leader in AI Edge hardware solutions, announces the latest entry in their UP Bridge the Gap brand, the UP Squared Pro. The UP Squared Pro offers developers an updated platform based on the popular UP Squared platform, offering greater expandability and I/O features. With support for 5G modules and AI accelerators, the UP Squared Pro takes AI Edge computing to the Pro level.

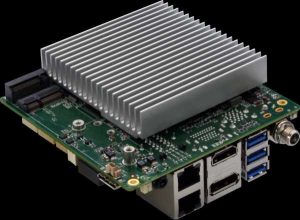

The UP Squared Pro (UPN-APL) is an updated rebuild based on the popular UP Squared board. Powered by Intel® Celeron® N3350, Pentium® N4200 and Atom™ E3950 processors (formerly known as Apollo Lake), the UP Squared Pro maintains the same familiar ecosystem allowing developers to easily migrate any projects built on the UP Squared platform. UP Squared Pro also features on-board physical TPM 2.0, to enhance data security. Altogether, the board offers the performance and efficiency to power a range of edge applications, including drones and autonomous robots.
The UP Squared Pro provides greater expandability thanks to three M.2 slots, including M.2 2230 E-Key, M.2 2280 M-Key, and M.2 3042/3052 B-Key. This lets developers and users to quickly add on functionality such as Wi-Fi and AI accelerators such as the AI Core XM2280 module featuring two Intel® Movidius® Myriad™ X VPUs. The UP Squared Pro also supports 5G cellular cards, allowing developers to take advantage of lower latency and higher speeds for wireless network deployment. The UP Squared Pro features a 40-pin HAT expansion as well, and offers expandable storage with SATA III connectors.
The UP Squared Pro also offers an upgrade in I/O features. Developers can now take advantage of faster internet speeds with two Intel® i210 Gigabit Ethernet ports, and wide voltage input (12V~24V) allows the UP Squared Pro to be deployed to industrial environments. Also featured on the board is an Audio Jack allowing both input and output, as well as three USB3.2 Gen 1 ports, two USB2.0 headers and two COM port headers. The UP Squared Pro also features HDMI, eDP and DP video outputs, and is capable of supporting up to three independent displays, perfect for Smart Surveillance and Retail applications.
Read more: TAKE AI EDGE TO THE PRO LEVEL WITH UP SQUARED PRO
- What processors power the UP Squared Pro?
The UP Squared Pro is powered by Intel Celeron N3350, Pentium N4200, or Atom E3950 processors. - Can the UP Squared Pro support AI accelerators?
Yes, it supports AI accelerators such as the AI Core XM2280 module with two Intel Movidius Myriad X VPUs. - Does the UP Squared Pro support 5G modules?
Yes, the board supports 5G cellular cards. - How many M.2 slots does the UP Squared Pro have?
It provides three M.2 slots: M.2 2230 E-Key, M.2 2280 M-Key, and M.2 3042/3052 B-Key. - What network interfaces are available on the UP Squared Pro?
It features two Intel i210 Gigabit Ethernet ports. - Can the UP Squared Pro be used in industrial environments?
Yes, it supports wide voltage input (12V to 24V) suitable for industrial deployment. - Does the UP Squared Pro include TPM security?
Yes, the board includes on-board physical TPM 2.0. - How many displays can the UP Squared Pro support?
It is capable of supporting up to three independent displays via HDMI, eDP, and DP outputs. - What USB and serial connectivity does the UP Squared Pro offer?
It offers three USB 3.2 Gen 1 ports, two USB 2.0 headers, and two COM port headers.
