Summary of SA65 CHIP SCALE ATOMIC CLOCK FOR IMPROVED ENVIRONMENTAL RUGGEDNESS
The SA65 Chip Scale Atomic Clock (CSAC) from Microchip is a rugged, ultra-precise, low-power timing solution for military and industrial systems. It is form-, fit- and function-compatible with the SA.45s, operates from -40 to 80°C (storage -55 to 105°C), offers 120 s warm-up at -40°C, 120 mW power, 17 cm3 volume, 35 g weight, and provides 10 MHz and 1 PPS CMOS outputs, RS-232 control, and strong stability and aging characteristics for GNSS-denied A-PNT and C5ISR applications.
Parts used in the SA65 Chip Scale Atomic Clock:
- SA65 Chip Scale Atomic Clock module
- 10MHz square wave CMOS output
- 1PPS CMOS output
- 1 PPS input for synchronization
- RS-232 interface for monitoring and control

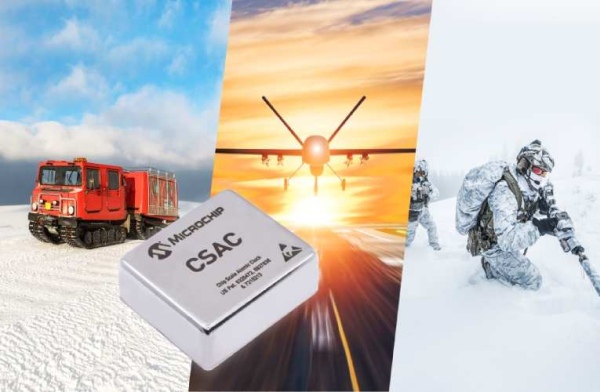

Suitable for military and industrial systems, the new SA65 Chip Scale Atomic Clock (CSAC) from Microchip enables designers to meet wide operating temperatures, fast warm-up, and improved frequency stability requirements in extreme environments. Featuring ultra-high precision and low power consumption, this new device is form-, fit- and function-compatible with the SA.45s, and helps in improving performance and environmental insensitivity.
The SA65 CSAC is an embedded timing solution with improved environmental ruggedness, has an operating temperature range of -40 to 80 degrees Celsius, and a storage temperature range of -55 to 105 oC. The warm-up time of two minutes at -40 oC is 33% faster than that of the SA.45s. It is the low-power commercial atomic clock that provides precise timing for portable and battery-powered applications requiring continuous operation and holdover in GNSS-denied environments.
This is a highly-portable solution for military applications such as Assured Position, Navigation and Timing (A-PNT) and command, control, communications, computers, cyber, intelligence, surveillance, and reconnaissance (C5ISR) requiring precise frequencies generated by a low Size, Weight, and Power (SWaP) atomic clock.
Key Features of SA65 Chip Scale Atomic Clock
- -40°C to +80°C Operating Temperature
- -55°C to +105°C Storage Temperature
- 120 seconds Rapid Warm Up/Atomic Lock
- 3E-10 Tempco (-40°C to +80°C)
- 120mW power consumption
- 17cm3 volume
- 35g weight
- ±5.0E-11 accuracy at shipment
- 1.5 E-11 @1000s Short Term Stability (Allan Deviation)
- 9E-10 /mo Aging Rate (Typical)
- 10MHz square wave and 1PPS, both in a CMOS 0V to 3.3V format.
- 1 PPS input for synchronization
- RS-232 interface for monitoring and control
Read more: SA65 CHIP SCALE ATOMIC CLOCK FOR IMPROVED ENVIRONMENTAL RUGGEDNESS
- What operating temperature range does the SA65 support?
The SA65 operates from -40°C to +80°C with storage from -55°C to +105°C. - How fast does the SA65 warm up at -40°C?
The SA65 achieves atomic lock with a 120 second warm-up at -40°C, 33% faster than the SA.45s. - What power consumption does the SA65 have?
The SA65 consumes 120 mW of power. - What outputs are provided by the SA65?
It provides a 10 MHz square wave and 1 PPS, both in CMOS 0V to 3.3V format. - Can the SA65 be synchronized externally?
Yes, it includes a 1 PPS input for synchronization. - Does the SA65 offer an interface for monitoring and control?
Yes, the SA65 includes an RS-232 interface for monitoring and control. - What are the size and weight of the SA65?
The SA65 has a volume of 17 cm3 and weighs 35 g. - What stability and accuracy specs does the SA65 provide?
It ships with ±5.0E-11 accuracy, has 1.5 E-11 short term stability at 1000 s (Allan deviation), and a typical aging rate of 9E-10 per month.
