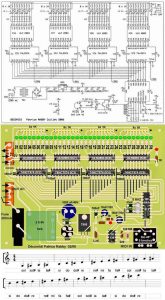

PIC16F84 32-OUTPUTS MIDI DECODER
Here is the description a 32 outputs MIDI able to switch relays, electromagnetics devices… in order to automate a mechanical musical instrument, or command lights…
Data from a musical instrument equipped with a MIDI output or sound card (MIDI) are analyzed by the software on the PIC 16F84. The IC10 optocoupler (6N136) provides galvanic isolation. Outputs PortB form a parallel 8 bit data bus to 4 74LS574 (8 latches). The PortA 1,2,3,4 outputs control the storage of these 74LS574 Buffers power ULN2803 can control loads up to 2A.
The 5V power supply is built around a 7805 controller. CN7 connector receives power from 9 to 24V depending on the type of relay or solenoid.
