Summary of CLT03-1SC3 DIGITAL INPUT CURRENT LIMITER
The CLT03 series is a digital input current limiter that reduces power dissipation by activating only when an input signal is present and consuming no power when off. It supports high-side and low-side connections, reverse plugin compatibility, drives optocouplers or 3.3 V LVTTL inputs, meets IEC 61131-2 type 1 and 3 characteristics, includes a deglitch filter for EMC robustness, and is available in single and dual isolated channel devices and two package options.
Parts used in the CLT03 series project:
- CLT03-1SC3 device (single channel option)
- CLT03-2Q3 device (dual channel option)
- STEVAL-IFP035V1 evaluation board (for CLT03-2Q3)
- Opto-coupler (for isolated digital input drive)
- 3.3 V LVTTL digital input circuit (for non-isolated drive)
- SOT23-8L package (650 µm pitch option)
- QFN-16L package (500 µm pitch option)
The CLT03 series is a digital input current limiter which drastically reduces the power dissipation of the digital inputs. It does not require external power supply as the device is activated with the input signal and it consumes no power in off state.
The CLT03 series is high side and low side compatible, as well as reverse plugin compatible. It can drive either opto-coupler or 3.3 V LVTTL circuit.
The CLT03-2Q3 can be evaluated thanks to the STEVAL-IFP035V1 evaluation board which embeds an isolated and non-isolated digital inputs configuration.
-
All features
- Single and dual isolated channel devices
- No power supply needed
- Digital input current limitation
- Enables input to meet type 1 and 3 characteristic of IEC 61131-2 standard
- Deglitch filter for EMC robustness
- High side / Low side compatible
- Inputs are reverse plugin compatible
- Drive isolated opto-couplers or non-isolated LVTTL digital input termination
- Operating ambient temperature range from -30 °C to 125 °C
- Two packages

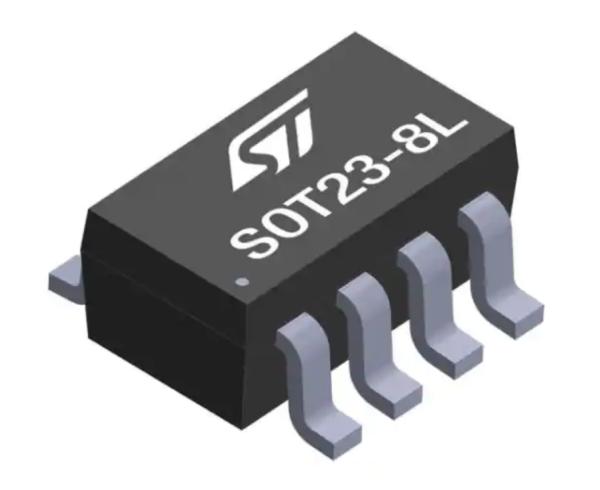

- SOT23-8L – 650 µm pitch
- QFN-16L – 500 µm pitch
- Complies with the following standards:
- IEC 61000-4-2 level 1: ±4 kV (air discharge)
- IEC 61000-4-2 level 1: ±2 kV (contact discharge)
Read more:CLT03-1SC3 DIGITAL INPUT CURRENT LIMITER
- Does the CLT03 require an external power supply?
No, the CLT03 does not require an external power supply; it is activated with the input signal and consumes no power in off state. - Can the CLT03 drive opto-couplers?
Yes, the CLT03 can drive isolated opto-couplers. - Is the CLT03 compatible with LVTTL inputs?
Yes, the CLT03 can drive 3.3 V LVTTL digital input termination. - Is the CLT03 high side and low side compatible?
Yes, the CLT03 series is both high side and low side compatible. - Does the CLT03 support reverse plugin compatibility?
Yes, the inputs are reverse plugin compatible. - What temperature range does the CLT03 operate in?
The CLT03 operates in an ambient temperature range from -30 °C to 125 °C. - What packages are available for the CLT03?
The CLT03 is available in SOT23-8L (650 µm pitch) and QFN-16L (500 µm pitch) packages. - Does the CLT03 include features for EMC robustness?
Yes, the CLT03 includes a deglitch filter for EMC robustness. - Which standards does the CLT03 comply with for ESD?
It complies with IEC 61000-4-2 level 1: ±4 kV air discharge and ±2 kV contact discharge. - Is there an evaluation board available for the CLT03-2Q3?
Yes, the STEVAL-IFP035V1 evaluation board embeds isolated and non-isolated digital input configurations for the CLT03-2Q3.
