1MM-THIN POLYMER ALUMINUM ELECTROLYTICS PROVIDES HIGH RIPPLE CURRENT AND CAPACITANCE

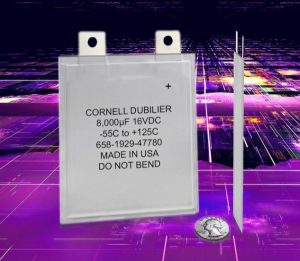

The new PPC Series of ultra-thin polymer aluminum electrolytic capacitors from Cornell Dubilier represents a totally new capacitor form factor. Designed specifically for applications requiring high ripple current and the thinnest possible profiles, type PPC opens up new product design options. In addition to being just 1 mm thin, the PPC uses versatile packaging technology that makes it possible for capacitors to be formed into custom shapes and sizes to accommodate available space.

1MM-THIN POLYMER ALUMINUM ELECTROLYTICS PROVIDES HIGH RIPPLE CURRENT AND CAPACITANCE

Custom values are available within a capacitance range of 8,000 µF to 20,000 µF, with working voltages ranging from 6.3 to 24 WVDC. The company plans to extend the series to higher operating voltages later in the year. Operating life is 2,000 hours @125 °C.

Highlights

  • +125 °C, Up to 2,000 Hours Load Life
  • Low Leakage Current
  • Very Low ESR and High Ripple Current
  • Just 1 mm thin

The PPC is rated for 10 g peak for vibration and withstands shocks up to 100 g’s (MIL-STD-202, Method 213, Condition I). With flat tin-plated copper terminations, it is possible to mount the device off-board or directly to a PCB. Mounting is by means of 3M double-sided VHB tape™, to ensure that the entire capacitor surface is kept rigid.

Read more: 1MM-THIN POLYMER ALUMINUM ELECTROLYTICS PROVIDES HIGH RIPPLE CURRENT AND CAPACITANCE
