Summary of WIDE ASPECT RATIO DISPLAY DELIVERS EXCELLENT COLOUR PERFORMANCE
KOE has introduced the TX16D206VM0BAA, a 6.2-inch HVGA (640 × 240) TFT IPS display with an 8:3 wide aspect ratio aimed at industrial HMI, process control, and medical monitoring. It offers IPS optical performance with up to 170° viewing angles, 1200:1 contrast, 400 cd/m² brightness from a long-life white LED backlight, excellent color saturation, stable images, and highly saturated blacks suitable for compact letterbox-format designs.
Parts used in the TX16D206VM0BAA:
- 6.2-inch TFT LCD panel
- In-plane switching (IPS) panel technology
- White LED backlight
- Display driver electronics (integrated module)
- HVGA resolution matrix (640 × 240 pixels)
- 8:3 aspect-ratio housing/frame

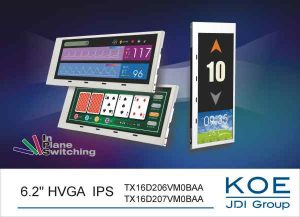

Industrial LCD manufacturer KOE (Kaohsiung Opto-Electronics) has announced the introduction of a new high-performance 6.2-inch TFT display module. The TX16D206VM0BAA TFT display features HVGA resolution (640 x 240 pixels), a wide 8:3 aspect ratio, and IPS (in-plane switching) technology which delivers exceptional optical performance.
The KOE TX16D206VM0BAA display module provides the ideal solution for use in process control systems, industrial HMI, and medical monitoring equipment. Featuring the latest IPS display technology, the 6.2-inch display delivers excellent colour saturation and image stability, high contrast and highly saturated black levels. Exceptional all-round viewing angles of up to 170° are enabled (left/right, up/down).
The 6.2-inch display module provides strong optical performance, with a contrast ratio of 1200:1 and a long lifetime white LED backlight with a specified brightness rating of 400cd/m². These key features ensure that display images are bright, consistent and exhibit high accurately colour reproduction.
Benson Huang, marketing manager, KOE said:
In-plane switching technology provides highly consistent colour and accurate image reproduction. These are essential requirements for display systems used in medical, audio visual, professional broadcast and a growing number of industrial applications. The 6.2-inch display offers a compact but versatile letterbox format which can be easily accommodated in product designs for measurement and monitoring equipment, and rack-mounted systems.
Read more: WIDE ASPECT RATIO DISPLAY DELIVERS EXCELLENT COLOUR PERFORMANCE
- What is the resolution of the TX16D206VM0BAA?
The resolution is HVGA 640 × 240 pixels. - What is the screen size and aspect ratio of the display?
The screen size is 6.2 inches with an 8:3 wide aspect ratio. - What panel technology does the TX16D206VM0BAA use?
It uses in-plane switching IPS technology. - What viewing angles does the display provide?
It provides viewing angles up to 170 degrees left/right and up/down. - What is the contrast ratio of the display?
The contrast ratio is 1200:1. - What brightness does the backlight provide?
The long-life white LED backlight is specified at 400 cd/m². - What applications is the TX16D206VM0BAA suited for?
It is suited for process control systems, industrial HMI, and medical monitoring equipment. - What optical advantages does IPS offer for this display?
IPS offers highly consistent colour, accurate image reproduction, excellent colour saturation, image stability, and highly saturated black levels.
