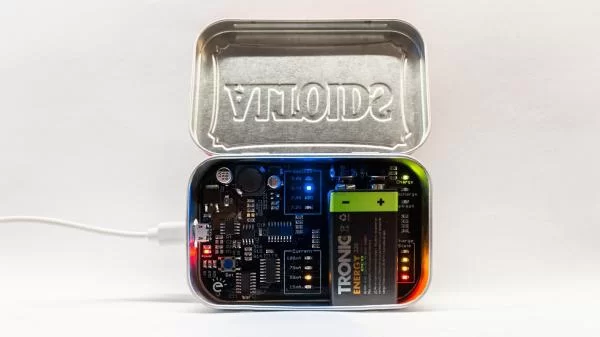

Summary of THIS MINTYCHARGER IS DESIGNED FOR ALL 9V PP3 BATTERIES IN THE MARKET
MintyCharger is a compact universal charger for 9V PP3 batteries that supports NiMH (7.2V, 8.4V, 9.6V) and Li-Ion (7.4V) chemistries. It includes a refresh function to perform full discharge/charge cycles to reduce overcharging and extend battery life. The device uses a Microchip PIC16F18325-I/SL 8-bit microcontroller with 14KB flash as its main controller.
Parts used in the MintyCharger:
- Microchip PIC16F18325-I/SL microcontroller (8-bit, 14KB flash)
- Power supply/regulator components (for generating 7.2V, 8.4V, 9.6V, 7.4V outputs)
- Battery connector for 9V PP3
- Charging control circuitry
- Refresh (discharge/charge) control circuitry
- Compact enclosure
- User interface components (buttons/LEDs for mode selection and status)
With the increase in the demand for 9V PP3 batteries, there is a significant need for an efficient charger. One might be able to find several PP3 batteries that are manufactured majority being NiMH, however, there is an alternative of Li-Ion batteries.
This has made it difficult to get a suitable charger for your rechargeable PP3 batteries. Some battery chargers provide 7.2V up to 9.6V but are limited to certain battery chemistry. This new product, MintyCharger, is an invention to solve this confusion and chaos. For those looking for a single battery charger that can work on every single PP3 battery out there in the market, this will work seamlessly through its compact form fact.

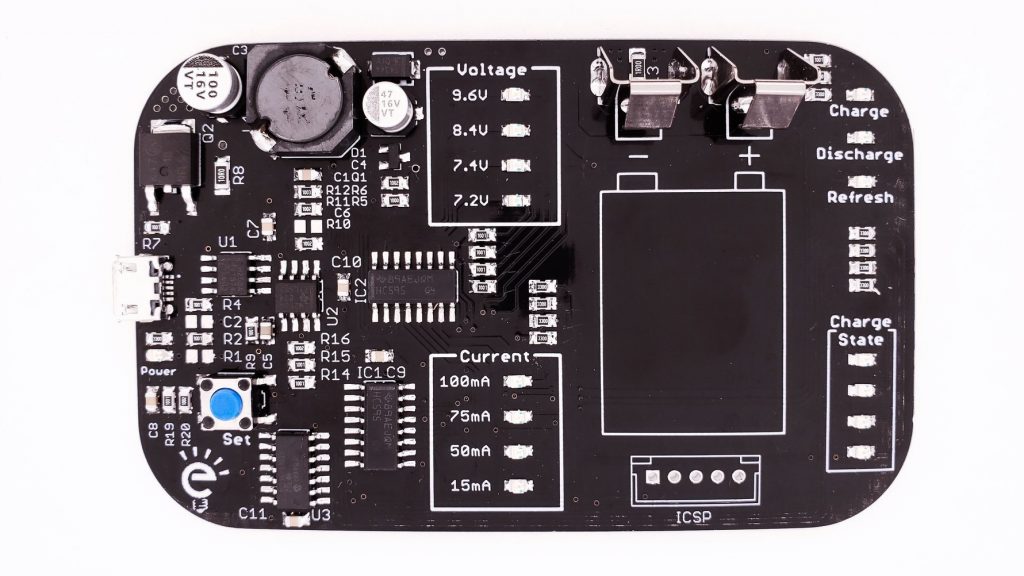

There are several things that you can look for while buying a battery charger for your 9V PP3 batteries, one of which is avoidance of overcharging of batteries. To resolve this, MintyCharger comes with a refresh function that allows the hardware to perform a full discharge/charge cycle. This helps to improve battery life when several chargers in the market abuse them by over-discharge. Looking at the internals of this battery charger, we noticed that it works on the Microchip PIC16F18325-I/SL as the main controller. With this 8-bit microcontroller getting 14KB flash memory is capable of supplying 7.2V, 8.4V, 9.6V outputs for NiMH batteries while 7.4V for Li-Ion batteries.
Read more: THIS MINTYCHARGER IS DESIGNED FOR ALL 9V PP3 BATTERIES IN THE MARKET
- What battery chemistries does MintyCharger support?
MintyCharger supports NiMH and Li-Ion 9V PP3 batteries. - What output voltages does MintyCharger provide for NiMH batteries?
It provides 7.2V, 8.4V, and 9.6V outputs for NiMH batteries. - What output voltage does MintyCharger provide for Li-Ion batteries?
It provides a 7.4V output for Li-Ion batteries. - How does MintyCharger prevent overcharging?
It includes a refresh function that performs a full discharge/charge cycle to help prevent overcharging and improve battery life. - What is the main controller used in MintyCharger?
The main controller is a Microchip PIC16F18325-I/SL 8-bit microcontroller with 14KB flash. - Is MintyCharger designed to work with all PP3 batteries on the market?
Yes, it is designed as a universal charger to work with every PP3 battery available in the market. - Does MintyCharger offer a compact form factor?
Yes, MintyCharger is described as compact and seamless in form factor.
