Summary of OLIMEX LAUNCHED ESP32-S2-DEVKIT-LIPO-USB DEVELOPMENT BOARD
ESP32-S2-DevKit-Lipo-USB is an ESP32-S2 based development board with USB-OTG host/device support, built-in LiPo charger allowing battery operation for handheld projects, industrial-grade components (-40 to +85°C), and pin-compatible with ESP32-Saola-1. Variants include DevKit-Lipo-EA (U.FL external antenna) and WROVER-DevKit-Lipo (4MB Flash, 2MB PSRAM). It supports low-power modes (deep sleep ~20–65 µA) and can be programmed via built-in USB or external programmers like ESP-PROG.
Parts used in the ESP32-S2-DevKit-Lipo-USB:
- ESP32-S2 microcontroller SoC
- USB interface with OTG (host and device) functionality
- LiPo battery charger
- LiPo battery connector/power supply support
- Industrial-grade components rated -40 to +85C
- ESP32 module with U.FL connector and external antenna (DevKit-Lipo-EA variant)
- ESP32-WROVER-B module with 4MB Flash and 2MB PSRAM (WROVER variant)
- Pin-compatible headers matching ESP32-Saola-1
- Provision for external programmer connection (e.g., ESP-PROG)

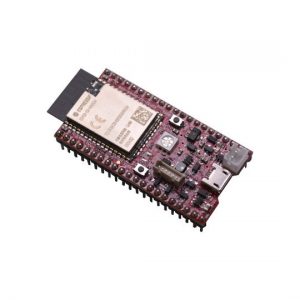

ESP32-S2-DevKit-Lipo-USB is an ESP32-S2 based development board with USB host and device functionality USB-OTG
ESP32-S2 is a highly integrated, low-power, single-core Wi-Fi Microcontroller SoC, designed to be secure and cost-effective, with high performance and a rich set of IO capabilities. Compared to ESP32, ESP32-S2 is only single-core and misses the Ethernet and Bluetooth connectivity, but have many mode GPIOs which were missing in ESP32. The typical use is for WiFi-enabled devices. ESP32-S2 supports low power modes including deep sleep with as low as 20uA.
ESP32-S2-DevKit-Lipo-USB board is pin to pin compatible with Espressif ESP32-Saola-1, but adds Lipo charger and ability to work on LiPo power when the external power supply is missing, allowing handheld applications. ESP32-S2-DevKit-Lipo-USB uses the built-in USB interface and can work as host and device, even when powered by the LiPo battery. All components used are with industrial-grade operating temperature -40+85C.ESP32-S2-DevKit-Lipo-EA comes with an ESP32 module with a U.FL connector and external antenna attached.\
ESP32-S2-WROVER-DevKit-Lipo comes with ESP32-WROVER-B module with 4MB Flash and 2MB PSRAM. The power consumption of ESP32-WROVER-DevKit-Lipo is 65 uA in deep sleep mode.
ESP32-S2-DevKit-Lipo-USB can be programmed via a built-in USB interface, but the board has provisions for external programmers like ESP-PROG to be used for code programming.
Read more: OLIMEX LAUNCHED ESP32-S2-DEVKIT-LIPO-USB DEVELOPMENT BOARD
- What core and wireless features does ESP32-S2 use?
ESP32-S2 is a single-core Wi-Fi microcontroller SoC; it does not include Ethernet or Bluetooth. - Can the board work from a LiPo battery?
Yes, the board includes a LiPo charger and can operate on LiPo power when external power is missing. - Does the board support USB host and device modes?
Yes, it uses the built-in USB interface and supports USB host and device (USB-OTG) functionality. - Is the board compatible with ESP32-Saola-1 pinout?
Yes, ESP32-S2-DevKit-Lipo-USB is pin to pin compatible with Espressif ESP32-Saola-1. - What are the temperature ratings of the components?
All components used are industrial-grade with operating temperature range -40 to +85C. - Can the board be programmed without the USB interface?
Yes, the board has provisions for external programmers like ESP-PROG to be used for code programming. - What variant includes an external antenna connector?
ESP32-S2-DevKit-Lipo-EA comes with an ESP32 module with a U.FL connector and external antenna attached. - Which variant includes PSRAM and how much flash does it have?
ESP32-S2-WROVER-DevKit-Lipo comes with ESP32-WROVER-B module featuring 4MB Flash and 2MB PSRAM. - What is the deep sleep power consumption?
ESP32-S2 supports deep sleep with as low as 20uA; the WROVER-DevKit-Lipo reports deep sleep around 65 uA.
