Summary of MYIR INTRODUCES ZYNQ ULTRASCALE+ MPSOC BASED VISION EDGE COMPUTING PLATFORM
MYIR's VECP Starter Kit is a Vision Edge Computing Platform centered on the Xilinx Zynq UltraScale+ ZU3EG. It includes the MYD-CZU3EG-ISP development board (with MYC-CZU3EG CPU module and active heatsink), a base board, and a SONY imx334 4K sensor connected via FPC to MIPI-CSI. The board runs Linux, features an ISP core handling 4K@30fps with 0.7ms latency, and supports GigE Vision and USB3 Vision for high-speed transmission. The kit is priced at $599 and MYIR offers custom design services.
Parts used in the VECP Starter Kit:
- MYD-CZU3EG-ISP development board
- MYC-CZU3EG CPU Module
- Active heatsink (installed on CPU module)
- Base board
- SONY imx334 4K Sensor
- FPC cable (connecting sensor to MIPI-CSI)
- Xilinx Zynq UltraScale+ ZU3EG solution (SoC)

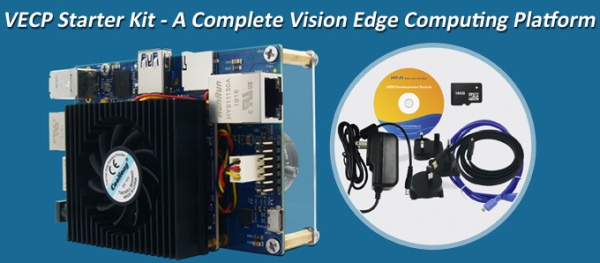

MYIR introduces the VECP Starter Kit, a complete Vision Edge Computing Platform designed to support excellent image processing for typical applications like Machine Vision, Industry, IoT, Medical and more others in different areas of business and everyday life.
The VECP Starter Kit is using Xilinx Zynq UltraScale+ ZU3EG solution and comes with a MYD-CZU3EG-ISP development board as well as some accessories to help users start their development rapidly. The MYD-CZU3EG-ISP board consists of a MYC-CZU3EG CPU Module with installed active heatsink, a base board and a SONY imx334 4K Sensor which is installed on the rear of the base board and connected to the board MIPI-CSI interface through an FPC cable. The board is ready to run Linux OS and provided with plenty of software resources.
The MYD-CZU3EG-ISP development board shows outstanding image processing performance through the built-in ISP core which is capable of handling 4K video at 30fps and implementing ultra-low delay video transmission at maximum 0.7ms. It also has integrated IP cores for high-speed video standards like GigE Vision and USB3 vision to allow the image transmission via the Gigabit Ethernet or USB 3.0 from the board FPGA logic part.
The VECP Starter Kit is offered at $599/unit only. MYIR also offers custom design services for board design based on the MYD-CZU3EG-ISP development board or customized image sensors or customized IP cores according to customers’ requirements.
Read more: MYIR INTRODUCES ZYNQ ULTRASCALE+ MPSOC BASED VISION EDGE COMPUTING PLATFORM
- What SoC does the VECP Starter Kit use?
It uses the Xilinx Zynq UltraScale+ ZU3EG solution. - What development board is included in the kit?
The kit includes the MYD-CZU3EG-ISP development board. - Which image sensor is provided with the kit?
The kit includes a SONY imx334 4K sensor. - How is the sensor connected to the board?
The sensor is installed on the rear of the base board and connected via an FPC cable to the MIPI-CSI interface. - What video performance does the built-in ISP core offer?
The ISP core can handle 4K video at 30fps and implement ultra-low delay video transmission at maximum 0.7ms. - Does the board support Linux?
Yes, the board is ready to run Linux OS and is provided with software resources. - How can images be transmitted from the board?
The board has integrated IP cores for GigE Vision and USB3 Vision to allow image transmission via Gigabit Ethernet or USB 3.0 from the FPGA logic. - How much does the VECP Starter Kit cost?
The VECP Starter Kit is offered at $599 per unit. - Does MYIR provide customization services?
Yes, MYIR offers custom design services for board design, customized image sensors, or customized IP cores based on customer requirements.
