Maintenance-free lead batteries Panasonic will surprise by their lifetime




When observing basic rules will the top quality AGM VRLA batteries last you up to 15 years – we will advise how

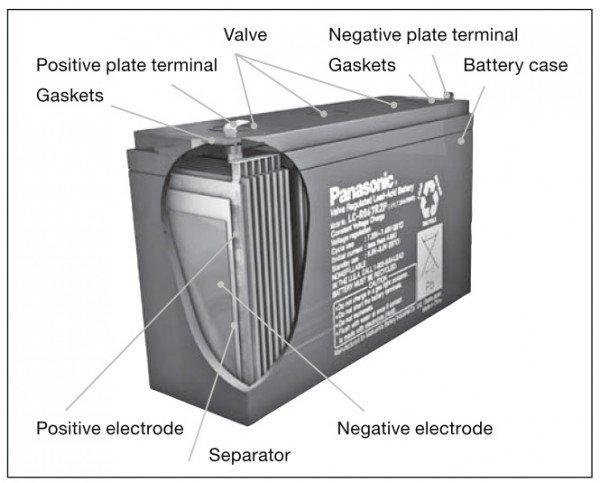

This description could start by a long list of technical improvements of Panasonic batteries. thanks to which they gained a stable place on the top of development in this segment (AGM, expanded positive grid. additives for regeneration from a deep discharge, self-extinguishing container material,…).

Maintenance-free lead batteries Panasonic will surprise by their lifetime

However those are things, which can be easily checked up from available internet source or even better from satisfied users. Instead of it, we better bring you a few advices for usage of VRLA/ SLA batteries to serve you as long as possible:

● batteries can be recharged by several ways, but one of the most reliable belongs a „constant voltage/ limited current“ method, i.e. observing max. 2.45V/ cell and a current limitation. It responds 14.7V at 12V battery and a max. current of 0.4CA. This is suitable at so called cycle usage.

● at a stable connection to a voltage source, a voltage per cell shouldn´t exceed 2.3V what is 13.8V at 12V battery. Current limitation should be set to 0.15CA.

● battery lifetime grows significantly with a decreasing temperature, i.e. it is very important to place a battery far from heat sources (transformer,…)

number of cycles (thus a battery lifetime) is very strongly dependent on a level of discharge before consequent recharging. Dependence is so strong, that for example at discharging to 50% a standard battery will reach a lifetime of approx.

For more detail: Maintenance-free lead batteries Panasonic will surprise by their lifetime
