How to use PIC18F4550 as a SPI Slave Transmitter- (Part 25/25)

The Serial Peripheral Interface (SPI) is a high speed, synchronous, serial communication standard. This communication protocol is basically a Master Slave implementation where the master device controls the clock based on which the slave devices operates. The master can communicates with one or more slave in the system through SPI bus.

The SPI bus requires a minimum of three wires i.e. a SDO (Serial Data Out), SDI (Serial Data Input) and SCK (Serial Clock). Since it is a master controller system the SDO is also called MOSI (Master Output Slave Input) and the SDI is also called MISO (Master Input Slave Output).The SPI is a full-duplex high speed communication protocol. The master and slave can transmit and receive data at the same time. The master generates clock for all these data transmissions.

The SPI is special because it is simple and easy to implement in the hardware. The article explores the SPI hardware module of the PIC18F4550 microcontroller. This project will help in better understanding of  the SPI protocol in detail.

Two PIC18F4550 are used in this project and one of them is programmed to act as a slave transmitter and the other is programmed to act as a master receiver, the method of data transfer between a master and slave is demonstrated with the help of an LCD.

The above diagram is a single buffer implementation of the SPI hardware. The data is shifted into the buffer from the slave device through the SDI (MISO) and the data is shifted out of the buffer to the slave through the SDO (MOSI). The only difference in the hardware configuration of a master and slave device is the direction of the clock. For a master device the clock is always output and for a slave device the clock is always input. The Clock unit generates the clock required for the data transmission. In case of a master device, the clock is generated by the device and all other devices in the SPI bus send or receive data to the master based on this clock. When the microcontroller is configured as a slave it can only accept the clock from a master device.

On each clock generated or received one bit in the SISO register is shifted from the SDI to SDO. After the eighth clock since the communication starts, one byte of data has been shifted out through the SDO and one byte of data has been shifted in through the SDI. Now the SISO has an entire byte received from the slave while transmitting a byte to the slave.

In PIC18F4550 the Serial Communication module is not dedicated for the SPI only, but it can be configured for IIC communication also. The entire module is called Master Synchronous Serial Port (MSSP) module. There are a few registers available in the PIC18F4550 which helps to configure the MSSP as an SPI master or slave module. The major registers associated with the SPI communication in the PIC18F4550 are SSPBUF, SSPSTAT and SSPCON1 register.

SSPBUF

The Synchronous Serial Port Buffer (SSPBUF) register is the register which holds the SPI data which needed to be shifted out to the slave or which has been shifted in from the slave. In case of a slave device this register holds the SPI data which needed to be shifted out to the master or which has been shifted in from the master.

The data can be read or write into the register for receiving and sending. In a master mode the clock signal will be generated and the data starts shifted out as soon as it is written into the SSPBUF. In a slave mode the data which has been written into the SSPBUF will shifted out only when the master generates clock.

SSPSTAT

The Synchronous Serial Port Status (SSPSTAT) register is the register which holds the status of the SPI module. The first two bits and the last bit of this register are only dedicated for the SPI communication.

SMP:

This bit decides whether the master should sample the data receiving from the slave at the beginning or at the middle of the clock. The following figure shows a master which is sampling the data from the slave SDI at the end of the clock SCK.

The following table shows the function of SMP bit when its value is 0 or 1.



1	Input data sampled at end of data output time
0	Input data sampled at middle of data output time

Fig. 5: Function of SMP bit when its value is 0 or 1 in SPI Communication

 When the microcontroller is configuring as a SPI slave the SMP bit should be cleared.

CKE:

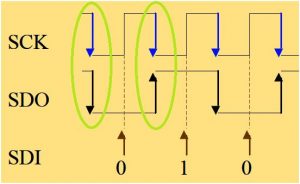

This bit is significant for both the master and slave device since it decide whether the data should be transmitted on the clock transition from active to idle state. In the following figure assume the clock low is the idle state, and then the data is transmitted through the SDO when the clock makes a transition from the active to idle state.

The following table shows the function of CKE bit when its value is 0 or 1.

1	Transmit occurs on transition from active to Idle clock state
0	Transmit occurs on transition from Idle to active clock state

Fig. 7: Function of CKE bit when its value is 0 or 1 in SPI Communication using PIC

BF:

This bit will get automatically set once eight bits are received in the buffer which makes the buffer full. The bit can hence be used to decide when the data can be read out. Before reading or writing to the SSPBUF the status of this BF bit should be checked till it becomes 1.

Whenever the BF bit is found to be set it means the transmission is complete or reception is complete, since in the SISO buffer implementation of the SSPBUF transmission of a byte happen along with the reception of another byte.

 The following table shows the function of CKE bit when its value is 0 or 1.

1	Receive complete, SSPBUF is full
0	Receive not complete, SSPBUF is empty



In this particular project both the master and the slave are configured with SMP=0(slave mode), CKE=0(transmission on Idle to active clock state), BF = 0 and all other bits 0. Hence the value that can be written into the SSPSTAT register is;

                                                                        SSPSTAT = 0x00;

SSPCON1

The Synchronous Serial Port Control 1(SSPCON1) register is the register which is dedicated register for the control of SPI only. All the bits of these register are significant and should be carefully set them.

WCOL:

This bit can be used to detect whether write collision has occurred or not. The write collision occurs when the data to be transmitted is written into the SSPBUF while it still transmitting the previous data.

The following table shows the function of WCOL bit when its value is 0 or 1.

1

The SSPBUF register is written while it is still transmitting the previous word

0

No collision occurred

Fig. 9: Function of WCOL bit when its value is 0 or 1 in SPI Communication

SSPOV:

This bit is significant only in the slave mode. It is used to detect whether a data overflow has occurred or not. The data overflow is said to happen when already eight bits are shifted into the SSPBUF from the master and then a ninth bit shifts in. As the ninth bit shifts in the first ever bit which has been shifted into the SSPBUF will be lost. In such a situation a read operation on the SSPBUF will give a junk data.

To avoid this data error while receiving from the master the SSPOV bit will get set once an overflow occurs. The overflow can be prevented by simply by reading out the SSPBUF once it completes receiving eight bits.

SSPEN:

This is the most important bit which enables the MSSP module as an SPI module. This bit is set for the first time when the SPI configuration is done. Resetting this bit during running of a program will reset the entire SPI module. When this bit is enabled the SCK, SDO, SDI and SS are configured as the SPI pins.

The following table shows the function of SSPEN bit when its value is 0 or 1.
