Cell Phone Can Make Calls Without a Battery




“Hello, hello. I am calling from a battery-free phone.” Vamsi Talla’s words in a cluttered lab at the University of Washington in Seattle are barely audible through pops and static. But the fact they can be heard at all, on a nearby Android smartphone, is revolutionary, because Talla’s own cell phone has no battery at all. It draws what little power it needs from thin air.

Cell-Phone-Can-Make-Calls-Without-a-Battery

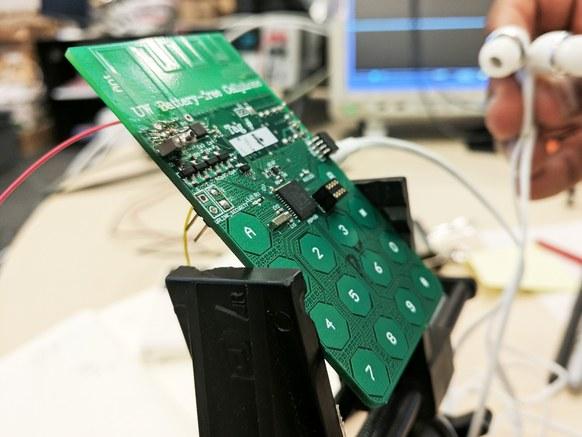

The prototype cell phone is the culmination of a years-long quest by Talla, a research associate at the lab of Joshua Smith, who researches computer science and electrical engineering at UW. “If you had to pick one device to make battery-free, what would you pick,” asks Smith. “A cell phone is one of the most useful objects there is. Now imagine if your battery ran out and you could still send texts and make calls.”

Realizing that vision required rethinking almost everything about how cell phones function today. In order to operate without a battery, the phone would have to rely only on energy that it could harvest from its surroundings.

Ambient light can be turned into a trickle of electricity with solar panels or photodiodes. Radio-frequency TV and Wi-Fi broadcasts can be converted into energy using an antenna. A hybrid system using both technologies might generate a few tens of microwatts. The problem is that a traditional cell phone uses tens of thousands of times more power, around 800 milliwatts, when making a call.

Power Up

The first thing the team tackled was communication. Smith’s lab developed a technique called backscatterthat allows a device to communicate by reflecting incoming radio waves, a bit like an injured hiker sending an SOS using the sun and a mirror. Smith has already spun out a start-up called Jeeva Wireless to commercialize what he calls “passive Wi-Fi”—digital backscatter technology for ultra-low power Wi-Fi gadgets. However, even passive Wi-Fi proved too power-hungry for the cell phone project.

READ  Tiny LiDAR Sensor Designed by Makers For Makers.

Read more: Cell Phone Can Make Calls Without a Battery
