BROADCOM AFBR-S4N33C013 IS A SILICON PHOTO MULTIPLIER

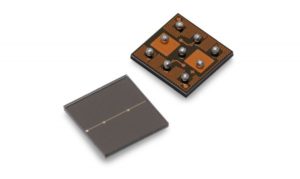

The Broadcom® AFBR-S4N33C013 is a single silicon photomultiplier (SiPM) used for ultra-sensitive precision measurement of single photons. The active area is 3.0 × 3.0 mm2.

BROADCOM AFBR-S4N33C013 IS A SILICON PHOTO MULTIPLIER

The high packing density of the single chips is achieved using through-silicon-via (TSV) technology and a chip-sized package (CSP). Larger areas can be covered by tiling multiple AFBR-S4N33C013 CSPs almost without any edge losses. The protective layer is made by a glass highly transparent down to UV wavelengths, resulting in a broad response in the visible light spectrum with high sensitivity towards blue- and near-UV region of the light spectrum.

The AFBR-S4N33C013 SiPM is best suited for the detection of low-level pulsed light sources, especially for the detection of Cherenkov- or scintillation light from the most common organic (plastic) and inorganic scintillator materials (for example, LSO, LYSO, BGO, NaI, CsI, BaF, LaBr). This product is lead-free and compliant with RoHS.

Key Features

  • High PDE of more than 54% at 420 nm
  • Chip-sized package (CSP)
  • Excellent SPTR and CRT
  • Excellent uniformity of breakdown voltage, 180 mV (3 sigma)

Additional Features

  • Excellent uniformity of gain
  • With TSV technology (4-side tileable), with high fill factors
  • Size 3.14 × 3.14 mm2
  • Cell pitch 30 × 30 μm2
  • A highly transparent glass protection layer
  • Operating temperature range from –40 °C to +85 °C
  • RoHS and REACH compliant
