Summary of BOXER-6642-CML: STELLAR PERFORMANCE FOR INDUSTRIAL COMPUTING

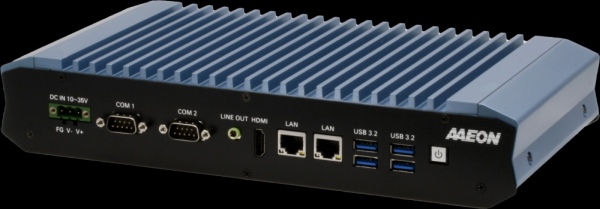

AAEON's BOXER-6642-CML is a fanless, low-profile (54 mm) industrial box PC powered by 10th Gen Intel Core and Celeron desktop processors (up to 35W TDP). It supports up to 64GB DDR4, wide 10–35V input, operates 0°C–45°C, and offers extensive expansion including M.2 2280 (M-Key) PCIe 3.0 x4 for NVMe, M.2 2230 (E-Key) for Wi-Fi/Bluetooth, and a full-sized Mini Card slot (PCIe/mSATA via BIOS), enabling scalable, reliable performance in constrained industrial environments.
Parts used in the BOXER-6642-CML:
- 10th Generation Intel Core i3/i5/i7/i9 processor (desktop, up to 35W TDP)
- Intel Celeron processor (Comet Lake, up to 35W TDP)
- DDR4 memory (up to 64GB)
- M.2 2280 (M-Key) slot (PCIe 3.0 x4) for NVMe SSD
- M.2 2230 (E-Key) slot for Wi-Fi or Bluetooth
- Full-sized Mini Card slot (supports PCIe and mSATA via BIOS)
- Fanless industrial chassis (54 mm height)
- Wide voltage input power subsystem (10 to 35V)
AAEON, a leader in industrial PC solutions, announces the BOXER-6642-CML fanless industrial box PC. Powered by 10th Generation Intel® Core™ desktop processors, this innovative solution delivers higher performance with greater value in a low-profile form factor perfect for deploying in tight spaces.
The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel® Core™ i3/i5/i7/i9 and Intel® Celeron® processors (formerly Comet Lake) up to 35W TDP. Utilizing a desktop socket-type chipset, the system delivers greater performance value compared with systems deploying mobile chipsets. Additionally, the system can be easily scaled or upgraded to match the performance needs of any application. With up to 64GB of DDR4 memory, the BOXER-6642-CML ensures top-end processing performance to support a wide range of industrial applications.
One key feature of the BOXER-6642-CML is its low-profile industrial design. At only 54mm in height, the system can fit into any tight space, making it easier to deploy right where it’s needed. The system also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C. The BOXER-6642-CML is built with fanless construction, keeping dust and other contaminants out, allowing for reliable, long-lasting operation.
One of the ways users and developers can take advantage of the BOXER-6642-CML system’s capabilities is through its broad expansion support. The system features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also delivers M.2 2230 (E-Key) to support a range of functions including Wi-Fi or Bluetooth connectivity. The BOXER-6642-CML is also built with a full-sized Mini Card slot that supports PCIe and mSATA, set via the BIOS.
Read more: BOXER-6642-CML: STELLAR PERFORMANCE FOR INDUSTRIAL COMPUTING
- What processors does the BOXER-6642-CML support?
It supports 10th Generation Intel Core i3/i5/i7/i9 and Intel Celeron processors (Comet Lake) up to 35W TDP. - How much memory can the BOXER-6642-CML accommodate?
It supports up to 64GB of DDR4 memory. - What is the height of the BOXER-6642-CML?
The system is 54 mm in height. - What operating temperature range does the BOXER-6642-CML support?
It provides consistent operation from 0°C up to 45°C. - Does the BOXER-6642-CML have fanless construction?
Yes, it is built with fanless construction to keep out dust and contaminants. - What storage and expansion options are available on the BOXER-6642-CML?
It includes an M.2 2280 (M-Key) PCIe 3.0 x4 slot for NVMe SSDs, an M.2 2230 (E-Key) for Wi-Fi/Bluetooth, and a full-sized Mini Card slot supporting PCIe and mSATA via BIOS. - What power input range does the BOXER-6642-CML accept?
It accepts a wide voltage input from 10 to 35V.
