Summary of AUDIO AMPLIFIER BOARD SUPPORTS BEKEN BK3266 BLUETOOTH 5.0 CHIP
The IC station offers a $10.59 audio amplifier board featuring the Beken BK3266 Bluetooth 5.0 chip. It supports DIY speakers, voice control, and hands-free calling by connecting to buttons, microphones, 10W/15W speakers, a power source, and optional audio inputs. Configuration is possible via UART using a USB-to-TTL debug board. While it claims Bluetooth 5.0 support, specific advanced features like extended range or advertising extensions are not explicitly utilized in this basic setup.
Parts used in the IC Station Audio Amplifier Project:
- Audio amplifier board with Beken BK3266 chip
- Buttons
- Microphone
- 10W or 15W speakers
- Power source
- Optional input audio signal
- USB connected to TTL debug board

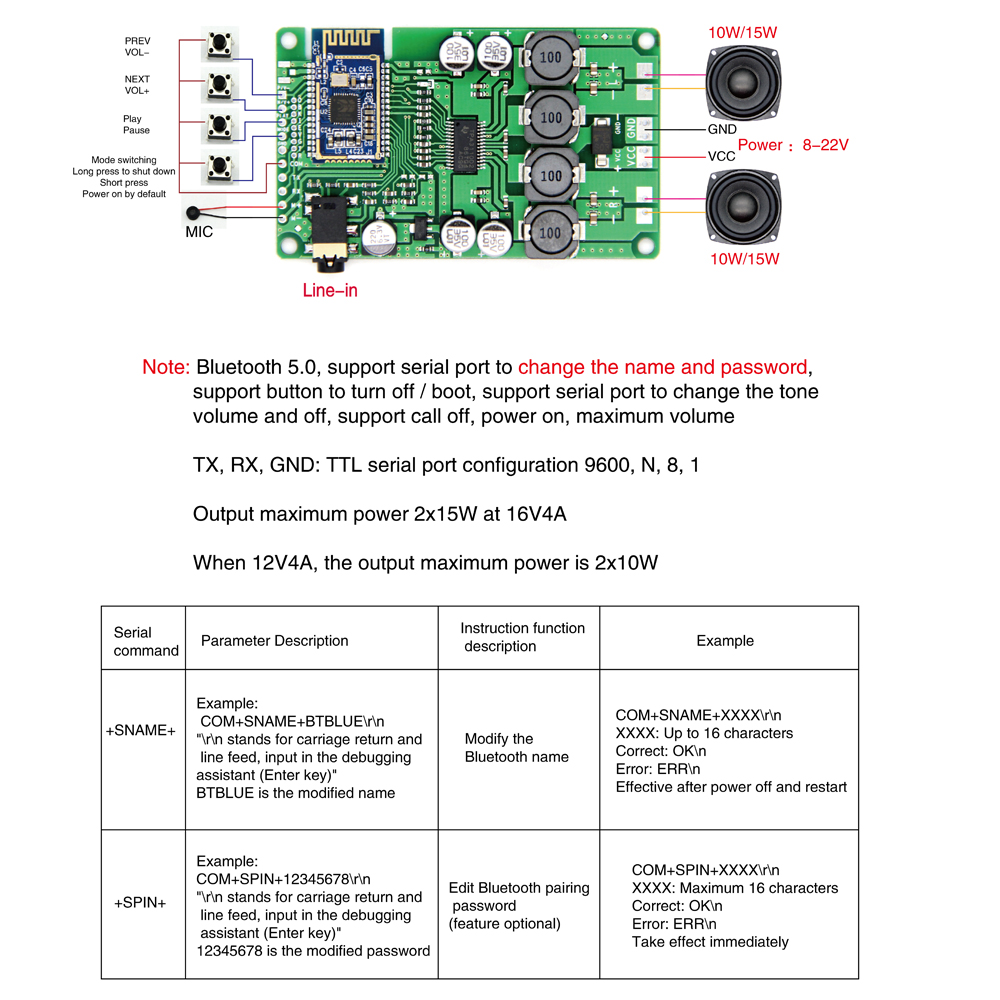

IC station has posted a $10.59 audio amplifier board that supports Bluetooth 5.0 via Beken BK3266 Bluetooth audio chip. For the board to work, you will have to connect buttons, a microphone and 10W or 15W speakers. The hardware setup has to be completed with a power source and an optional input audio signal. After setting it up, the board is ready to be paired with a Bluetooth device. A USB can be connected to the TTL debug board to configure the board over UART.
The board is suitable for a wide range of uses, like a DIY speaker, voice intelligent control, Bluetooth signal conversion, stereo Bluetooth speaker or headset, Bluetooth hands-free calling, Bluetooth control, to mention a few. The “Bluetooth 5 enables serial port interface to change name and password, a button to turn off or boot, serial port interface to change the tone volume, support call off, power on, maximum volume”, which don’t seem specifically related to BT 5.0. Version 5.0 supports a longer range of about 10m and this does not utilize its long-range feature. According to Bluetooth 5 specifications, Bluetooth 5 has the capability to carry out periodic data to be broadcasted, enabling chain packets and deterministic advertising.
This enables the scanners to function together and for each packet to contain different synchronization to scan for packets with the subset of the whole data set and schedule of the advertising device. This feature gives room for a more power-efficient way to perform scanning and might create room for new applications of Bluetooth LE in connection-less scenarios, such as audio applications. The advertising extensions feature is laying the groundwork for next-generation beacons, advanced audio applications, to mention just a few.
Read more: AUDIO AMPLIFIER BOARD SUPPORTS BEKEN BK3266 BLUETOOTH 5.0 CHIP
- What chip does the IC station audio amplifier board use?
The board uses the Beken BK3266 Bluetooth audio chip. - Can I connect a microphone to this board?
Yes, you must connect a microphone for the board to work. - How do I configure the board over UART?
A USB can be connected to the TTL debug board to configure the settings. - What speaker wattage is supported by this project?
The hardware setup requires 10W or 15W speakers. - Does this board support Bluetooth hands-free calling?
Yes, the board is suitable for Bluetooth hands-free calling among other uses. - Can I change the device name using this board?
Bluetooth 5 enables the serial port interface to change the device name and password. - What is the maximum operating range mentioned for Bluetooth 5.0 here?
Version 5.0 supports a longer range of about 10m. - Is an external power source required for operation?
Yes, the hardware setup must be completed with a power source.
