Summary of VENTANA GW5913 SINGLE BOARD COMPUTER
The GW5913 is a compact 35x100mm single board computer from Gateworks' 5th generation Ventana family, designed for IoT gateways, drones, and robotics. It features an 800MHz Freescale i.MX6 Dual Core processor, 512MB DDR3 RAM, and 256MB flash. The board supports Mini-PCIe expansion with nanoSIM, Gigabit Ethernet, and Power over Ethernet (802.3af/at). It includes extensive I/O headers, a system controller for power management, and operates on 8-60V DC within extreme temperatures (-40°C to +85°C), supporting OpenWrt and Ubuntu.
Parts used in the GW5913:
- Freescale™ i.MX6 Dual Core ARM ® Cortex™-A9 SoC Processor
- 512Mbytes of DDR3-800 DRAM
- 256Mbytes of System Flash
- Mini-PCIe expansion socket
- Nano-SIM support slot
- GbE Ethernet Port
- 20 pin header (Digital I/O, Analog Input, TTL Serial, I2C, USB 2.0)
- Gateworks System Controller
- Real time clock with battery backup
- Voltage and temperature monitor
- Serial EEPROM
- Programmable pushbutton switch
- Dedicated power connector or Ethernet jack
- Optional u-blox GPS Receiver
- MMCX or U.FL Antenna Connector

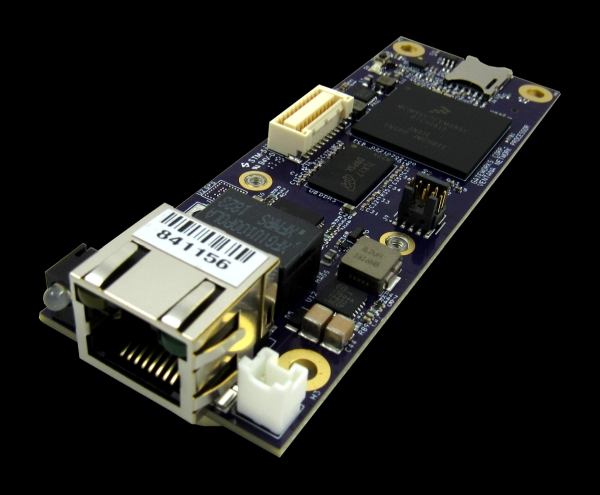

A miniature 35x100mm single board computer with Mini-PCIe, 802.3at GbE Ethernet, Nano-SIM and Peripheral I/O
The GW5913 is a member of the Gateworks 5th generation Ventana family of single board computers targeted for small embedded applications such as IoT Gateways, Man Portable Units (MPUs), Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics. The GW5913 features the Freescale™ i.MX6 Dual Core ARM ® Cortex™-A9 SoC processor operating at 800MHz, 512Mbytes of DDR3-800 DRAM, and 256Mbytes of System Flash. A Mini-PCIe expansion socket with nanoSIM support can be used for 802.11abgn radios, 4G/3G/CATM1 cellular modems and other PCI Express peripherals. A 20 pin header supports Digital I/O, Analog Input, TTL Serial, I2C and USB 2.0. The Gateworks System Controller provides embedded features such as real time clock, voltage and temperature monitor, serial EEPROM, programmable pushbutton switch, and advanced power management with programmable board shut-down and wake-up for remote sensor applications. A wide-range DC input power supply provides up to 8W of power to the Mini-PCIe socket for supporting the latest high-power radios. Power is applied through a dedicated connector or an Ethernet jack in an active 802.3af/at Power over Ethernet architecture. OpenWrt and Ubuntu BSPs are supported.
Features
- Freescale ™ i.MX6 800MHz Dual Core ARM ® Cortex™-A9 SoC Processor
- 512MB DDR3-800 SDRAM Memory and 256MB Flash System Memory
- High-Power Gen 2 Mini-PCIe Socket with USB 2.0 and nanoSIM
- GbE Ethernet Port
- Digital I/O & Analog Expansion
- TTL Serial Expansion
- I2C Expansion
- USB 2.0 Expansion
- Real Time Clock with Battery Backup
- Voltage and Temperature Monitor
- Serial Configuration EEPROM
- Programmable Watchdog Timer
- Optional u-blox GPS Receiver with MMCX or U.FL Antenna Connector
- 8 to 60VDC Input Voltage Range
- Power Through Dedicated Connector or Ethernet with 802.3af/at Active PoE
- 2W@25 ° C Typical Operating Power
- 8W Available for Mini-PCIe Socket
- Reverse Voltage Protection
- -40 ° C to +85 ° C Operating Temperature
- OpenWrt and Ubuntu Board Support Packages
- 1 Year Warranty
Read more: VENTANA GW5913 SINGLE BOARD COMPUTER
- What is the primary use case for the GW5913?
The GW5913 targets small embedded applications such as IoT Gateways, Man Portable Units, UAV equipment, digital signage, and robotics. - How does the GW5913 receive power?
Power is applied through a dedicated connector or an Ethernet jack using active 802.3af/at Power over Ethernet architecture. - Can the GW5913 support high-power radios?
Yes, a wide-range DC input supply provides up to 8W of power to the Mini-PCIe socket for supporting high-power radios. - What operating systems are supported by this board?
OpenWrt and Ubuntu Board Support Packages are supported. - Does the GW5913 have cellular connectivity options?
Yes, the Mini-PCIe expansion socket with nanoSIM support can be used for 4G/3G/CATM1 cellular modems. - What is the operating temperature range of the device?
The device operates within a temperature range of -40 ° C to +85 ° C. - What embedded features does the Gateworks System Controller provide?
It provides real time clock, voltage and temperature monitor, serial EEPROM, programmable pushbutton switch, and advanced power management. - Is there an option for GPS functionality?
An optional u-blox GPS Receiver with MMCX or U.FL Antenna Connector is available.
