Summary of NVIDIA JETSON TX2 AI COMPUTING PLATFORM FOR AIOT APPLICATIONS
IBASE Technology unveiled the EC-3200, an industrial AI computing platform powered by the NVIDIA Jetson TX2 processor. Designed for edge inference in smart cities and factories, it operates within -20°C to +60°C using a fanless design for reliability. The compact unit features 8GB LPDDR4 memory, 32GB eMMC storage, and extensive I/O including GbE, HDMI, USB ports, RS232, and GPIO. It supports M.2 expansion for SSDs or WAN modules and includes four antenna ports for robust outdoor connectivity, running on custom Ubuntu 16.04 with Jetpack 3.2.1.
Parts used in the EC-3200:
- NVIDIA Jetson Tegra X2 (TX2) processor
- Dual-core Denver 2 processor
- Quad-core ARM Cortex-A57 processor
- 256 CUDA cores on Pascal GPU architecture
- 8GB LPDDR4 memory
- 32GB eMMC storage
- GbE interface
- HDMI 1.4 port
- Two USB 3.0 ports
- Two USB 2.0 ports
- DB9 connector (RS232 or CAN bus)
- Micro USB slot
- External 10-pin GPIO port
- Two M.2 expansion slots
- Four external antenna ports
- Ubuntu 16.04 operating system
- Jetpack 3.2.1
- L4T 28.2

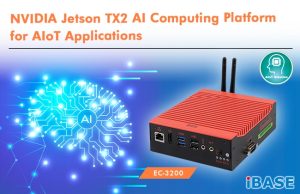

IBASE Technology Inc, a world-leading manufacturer of industrial motherboard boards and embedded computing solutions has revealed its latest EC-3200 AI computing platform that is based on the cutting-edge power-efficient and high-performance NVIDIA Jetson Tegra X2 (TX2) processor. The NVIDIA Jetson TX2 pairs a dual-core Denver 2 alongside a quad-core ARM® Cortex®-A57 processor and provides 256 CUDA cores on the NVIDIA’s advanced Pascalä GPU architecture with up to 1.33 TFLOPS, delivering exceptional AI performance.
Designed to operate under an extended temperature range from -20°C to +60°C, the EC-3200 leverages the integrated GPU-computing power of the Jetson TX2 platform in building edge inference servers to analyze and better manage real-time traffic flow in smart cities or to optimize the efficiency of operational processes in intelligent factories.
Current edge and cloud-based AI products require better computational and video analytics capability to perform demanding real-time data processing and overcome latency issues,” said Wilson Lin, Director of IBASE Product Planning Department. “The EC-3200 is no doubt a durable solution, especially built with a fanless design for non-stop operation, and takes advantage of the GPU-accelerated parallel processing of NVIDIA Jetson TX2 to handle data-intensive and mission-critical workloads with power efficiency and unmatched reliability.
With dimensions of 127(W) x 137(D) x 46(H) mm, the EC-3200 comes with 8GB LPDDR4 memory and 32GB eMMC storage on board. To connect to essential peripherals, front I/O interfaces provide a GbE, an HDMI (1.4), two USB 3.0 and two USB 2.0 ports, while a DB9 connector (For RS232 or CAN bus), a Micro USB slot, as well as an external 10-pin GPIO port are located on the right side. The two M.2 expansion slots are designed to support optional SSD storage (M2280) and WAN module (E3042). The system is outfitted with a total of four external antenna ports to enhance throughput and connection reliability in outdoor environments. The OS is based on a custom made Ubuntu 16.04 with Jetpack 3.2.1 and L4T 28.2.
Read more: NVIDIA JETSON TX2 AI COMPUTING PLATFORM FOR AIOT APPLICATIONS
- What is the EC-3200?
The EC-3200 is an AI computing platform based on the NVIDIA Jetson TX2 processor designed for edge inference servers. - Can the EC-3200 operate in extreme temperatures?
Yes, it is designed to operate under an extended temperature range from -20°C to +60°C. - How does the EC-3200 handle data-intensive workloads?
It leverages the GPU-accelerated parallel processing of the NVIDIA Jetson TX2 to handle these workloads with power efficiency. - Does the EC-3200 require active cooling?
No, it features a durable fanless design built for non-stop operation. - What are the dimensions of the EC-3200?
The system measures 127(W) x 137(D) x 46(H) mm. - What storage options are available on the EC-3200?
It comes with 32GB eMMC storage on board and two M.2 expansion slots supporting optional SSD storage. - Which operating system runs on the EC-3200?
The system runs a custom made Ubuntu 16.04 with Jetpack 3.2.1 and L4T 28.2. - Can the EC-3200 support wireless connectivity in outdoor environments?
Yes, it is outfitted with four external antenna ports to enhance throughput and connection reliability outdoors.
