Summary of NEW TRIPLE OUTPUT DC POWER SUPPLIES ARE CTUVUS CERTIFIED
B&K Precision introduces the 9140 Series Triple Output Multi-Range DC Power Supplies (9140: 32 V, 8 A; 9141: 60 V, 4 A). Each model provides three isolated, individually controllable outputs delivering up to 100 W per channel or 300 W total in a compact 2U half-rack. Features include multi-range operation, low ripple, list mode programming, output sequencing, LAN/USB remote control, USB data logging, optional GPIB, LabVIEW and IVI drivers, extensive protections, and cTUVus safety certification. Prices start at $1,850 with a 3-year warranty.
Parts used in the9140 Series Triple Output Multi-Range DC Power Supplies:
- Three isolated output channels (per unit)
- 4.3-inch LCD front panel
- Output terminals supporting sheathed banana plugs or spade lugs
- USB host port (front panel)
- USB device interface (USBTMC-compliant and USBVCP)
- LXI compliant LAN interface
- Optional GPIB interface
- Thermostatically-controlled fans
- Internal protections: OVP, OCP, OTP, key-lock
- Operating software, LabVIEW, IVI-C, and IVI.NET drivers

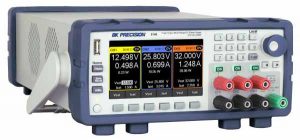

B&K Precision, a leading designer and manufacturer of reliable, cost-effective test and measurement instruments, today announces the 9140 Series Triple Output Multi-Range DC Power Supplies. With three isolated and individually controllable outputs, the 9140 (32 V, 8 A) and 9141 (60 V, 4 A) provide up to 300 W of clean power with low ripple and noise or 100 W per channel in a compact 2U half-rack form factor. The front panel features a 4.3-inch LCD and unique output terminals that support sheathed banana plugs or spade lug type connectors. Multiple outputs combined with advanced list mode programming, data logging, and extensive protection features make these power supplies suitable for a wide range of benchtop or test system applications.
This series offers several enhanced features not available on any of B&K Precision’s existing triple output power supplies. Powerful list mode features include list sequencing and step triggering for synchronizing events. List mode programs can be assigned to run on one or multiple channels simultaneously. Output sequencing allows users to link the output states between multiple channels with configurable on/off delays. Both models come equipped with LXI compliant LAN and USB (USBTMC-compliant and USBVCP) interfaces for remote control and programming with an optional GPIB interface. Remote control PC software, LabVIEWTM and IVI drivers are provided to simplify instrument control and test system integration. The USB host port on the front panel allows for logging voltage and current measurements directly to an external flash drive.
The 9140 Series is also cTUVus certified, indicating compliance with Canadian and U.S. National Safety Standards.
Available now, both models start at $1,850 and are backed by a 3-year standard warranty.
Features:
- Three independent, floating output channels for up to 100 W per channel or 300 W total
- High power density, compact 2U half-rack form factor
- Multi-ranging operation
- Low output ripple and noise down to 1 mVrms
- Combine outputs to increase voltage up to 180 V or 24 A (depending on model)
- Advanced and easy to use list mode programming
- Channel coupling, tracking, configurable delays
- Direct data logging to USB flash drive
- Thermostatically-controlled fans for quiet operation
- Adjustable voltage and current slew rates
- OVP, OCP, OTP, and key-lock protections
- USB (USBTMC-compliant) and LXI compliant LAN standard, GPIB option
- LabVIEWTM, IVI-C, and IVI.NET drivers provided
- Operating software included
- cTUVus certification mark
Read more: NEW TRIPLE OUTPUT DC POWER SUPPLIES ARE CTUVUS CERTIFIED
- What models are in the 9140 Series?
The series includes the 9140 (32 V, 8 A) and the 9141 (60 V, 4 A). - How much power can each channel deliver?
Each channel can deliver up to 100 W per channel. - What is the total maximum power of the unit?
The unit can provide up to 300 W total across all channels. - Can the outputs be combined for higher voltage or current?
Yes, outputs can be combined to increase voltage up to 180 V or current up to 24 A depending on model. - What remote interfaces are included?
USB (USBTMC-compliant and USBVCP) and LXI compliant LAN are standard, with an optional GPIB interface. - Does the unit support data logging?
Yes, it supports direct data logging to an external USB flash drive via the front USB host port. - Are there programming and driver resources provided?
Yes, operating software, LabVIEW, and IVI drivers (IVI-C and IVI.NET) are provided. - What protections are included?
OVP (over voltage), OCP (over current), OTP (over temperature), and key-lock protections are included. - Is the product safety certified?
Yes, the 9140 Series is cTUVus certified. - What is the warranty and starting price?
Both models start at $1,850 and are backed by a 3-year standard warranty.
