Summary of NEW COMPACT DUAL ETHERNET I.MX8M MINI SBC

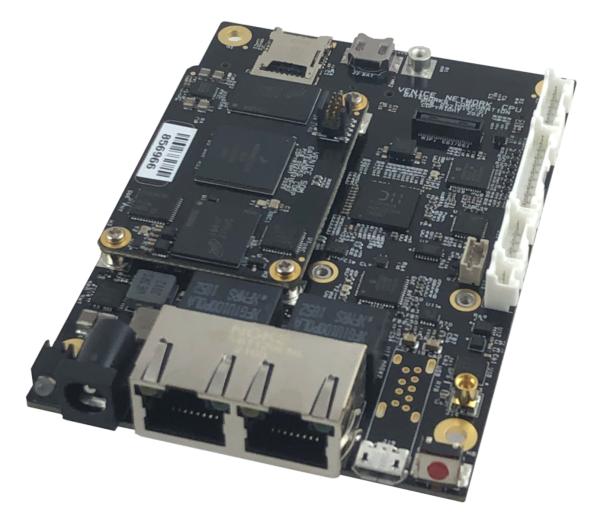

Gateworks released the Venice GW7200, a compact 70 x 100 mm industrial SBC powered by an NXP i.MX8M Mini 64-bit quad-core CPU. It includes dual Gigabit Ethernet, two Mini-PCIe slots, multiple I/O (USB OTG, DIO, I2C, SPI, RS232, ADC), MIPI DSI/CSI, Gateworks System Controller for system health and power, and optional upgrades to 4 GB RAM, 64 GB eMMC, GPS and M.2 adapter. Designed for rugged IoT, networking, and media use with industrial temperature support.
Parts used in the Venice GW7200:
- NXP i.MX8M Mini 64-Bit Quad Core ARMv8 SoC (1.6GHz)
- 1GB LPDDR4 RAM (4GB optional)
- 8GB eMMC Flash (64GB optional)
- Dual Gigabit Ethernet ports
- Two Mini-PCIe slots (for WiFi, cellular; M.2 adapter optional)
- MIPI DSI & CSI header for video and audio
- USB OTG port
- DIO (digital I/O) interfaces
- I2C interface
- SPI interface
- RS232 serial port
- ADC (analog-to-digital converter)
- Accelerometer
- Gateworks System Controller (GSC) for system health monitoring, RTC, secure key storage, and power control
- GPS (included in max version)
Gateworks is proud to announce the release of the Venice GW7200 Industrial Single Board Computer. This is the second member of the Venice family and based on the NXP i.MX8M Mini 64-Bit Quad Core ARMv8 SoC. This small 70 x 100 mm SBC features dual Gigabit Ethernet ports and two Mini-PCIe slots for cellular modems, WiFi radios and more.
The GW7200 additionally features USB, DIO, I2C, SPI and RS232 ports. A MIPI DSI/CSI header is also available for video and audio. The Gateworks System Controller (GSC) is also included which provides advanced system health monitoring, RTC, secure key storage and power control.
The GW7200 is competitively priced and is available now in both standard and max versions. The max version features GPS, 4GB DRAM memory and 64GB eMMC Flash memory.
The rugged GW7200 excels in IoT, networking and media applications.
Gateworks Venice GW7200 Highlights:
- Compact 70 x 100 mm Size
- NXP i.MX8M Mini Quad Core CPU at 1.6GHz
- 1GB LPDDR4 RAM (4GB Optional)
- 8GB eMMC Flash (64GB Optional)
- Dual GbE Ports for LAN and WAN
- Two Mini-PCIe Sockets for WiFi and Cellular, M.2 Adapter Optional
- MIPI DSI & CSI for Video/Audio
- USB OTG, DIO, SPI, I2C, RS232, ADC Interfaces
- Accelerometer
- Industrial Temperature -40 to +85C
Read more: NEW COMPACT DUAL ETHERNET I.MX8M MINI SBC
- What CPU does the Venice GW7200 use?
The Venice GW7200 uses the NXP i.MX8M Mini 64-Bit Quad Core ARMv8 SoC running at 1.6GHz. - Does the GW7200 support dual Ethernet?
Yes, it features dual Gigabit Ethernet ports for LAN and WAN. - How much RAM and storage does the GW7200 have?
The standard version has 1GB LPDDR4 RAM and 8GB eMMC Flash; the max version offers 4GB RAM and 64GB eMMC Flash. - Can I add WiFi or cellular modems to the GW7200?
Yes, it has two Mini-PCIe slots for WiFi radios and cellular modems, with an M.2 adapter optional. - What I/O interfaces are available on the GW7200?
Available interfaces include USB OTG, DIO, SPI, I2C, RS232, and ADC. - Does the board support video and audio connectivity?
Yes, a MIPI DSI and CSI header is available for video and audio. - What system management features does the GW7200 include?
It includes the Gateworks System Controller (GSC) providing system health monitoring, RTC, secure key storage, and power control. - Is the GW7200 suitable for industrial environments?
Yes, it is rated for industrial temperature operation from -40 to +85C. - What applications is the GW7200 intended for?
The GW7200 is designed for IoT, networking, and media applications.
