Summary of MELEXIS MLX90392 TRIAXIS MICROPOWER MAGNETOMETER
Melexis MLX90392 is a programmable Triaxis magnetometer IC providing 16-bit XYZ magnetic and temperature outputs. It supports selectable axes, two magnetic ranges (±5 mT low-noise and ±50 mT position sensing), micropower operation, and I2C communication. Packaged in a compact 2.0 × 2.5 × 0.4 mm UTDFN-8, it suits joysticks, rotary knobs, linear strokes, and 3D position sensing with selectable measurement modes and up to 1.4 kHz data rate.
Parts used in the Melexis MLX90392 Triaxis Position Sensor:
- Melexis MLX90392 Triaxis Micropower Magnetometer IC (UTDFN-8 package)
- ±5 mT magnetic variant MLX90392ELQ-AAA-010-xx
- ±50 mT magnetic variant MLX90392ELQ-AAA-011-xx
- I2C communication interface (device-supported)
- External microcontroller for post-processing (user-supplied)
- Magnet or magnetic field source for position sensing (application-dependent)
Melexis MLX90392 Triaxis® Micropower Magnetometer is a programmable sensor IC offering a 16-bit output proportional to the magnetic flux density sensed along the XYZ axes, along with temperature output signal. The MLX90392 is based on Melexis proprietary Triaxis technology. By selecting which axes are to be measured, the raw data can be used as input for further post-processing by an external microcontroller, making the device suitable for applications such as joysticks, rotary knobs, linear strokes, and complex 3D position sensing.
The MLX90392 is available in 2 magnetic variants:
- ±5mT range for low noise applications (MLX90392ELQ-AAA-010-xx)
- ±50mT range for for position sensor applications (MLX90392ELQ-AAA-011-xx)

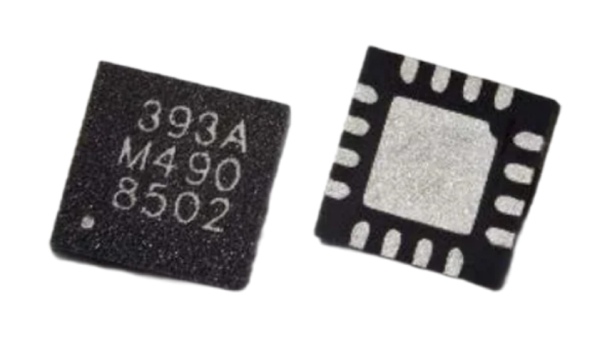

The Melexis MLX90392 Triaxis Position Sensor is offered in a compact 2.0mm x 2.5mm UTDFN-8 package, ideal for space-constrained applications.
Features
- Programmable parameters on the fly
- 0mT to 5mT/5mT to 50mT magnetic range
- Triaxis Hall technology
- 1µTrms for the ±5mT variant
- 7µTrms for the ±50mT variant
- Micropower
- Power down current of 1.5µA
- Supply voltage of 1.8V
- Selectable modes
- Single Measurement
- Continuous Mode up to 1.4kHz (XYZ)
- Fields of motion
- On-axis
- Off-axis
- Joystick
- Linear
- Integrated temperature sensor
- Digital 16-bit output for magnetic and temperature (XYZT)
- I2C output interface; 1.4kHz data rate
- Operating temperature range from -40C to +85℃
- 2.0mm x 2.5mm x 0.4mm UTDFN-8 package (JEDEC qualified)
Read more: MELEXIS MLX90392 TRIAXIS MICROPOWER MAGNETOMETER
- What outputs does the MLX90392 provide?
The MLX90392 provides 16-bit digital outputs for magnetic XYZ and temperature (XYZT). - What magnetic ranges are available for the MLX90392?
Two variants: ±5 mT for low-noise applications and ±50 mT for position sensor applications. - What communication interface does the MLX90392 use?
The device uses an I2C output interface with up to 1.4 kHz data rate. - What package does the MLX90392 come in?
It is offered in a 2.0 mm x 2.5 mm x 0.4 mm UTDFN-8 package (JEDEC qualified). - What is the operating temperature range of the MLX90392?
The operating temperature range is from -40 °C to +85 °C. - What are the noise specifications for each variant?
The ±5 mT variant has 1 µTrms noise and the ±50 mT variant has 7 µTrms noise. - What power characteristics does the MLX90392 have?
It is micropower with a power-down current of 1.5 µA and a supply voltage of 1.8 V. - Can the MLX90392 measure selected axes only?
Yes, axes to be measured can be selected so raw data can be post-processed by an external microcontroller. - What measurement modes are available?
Selectable modes include Single Measurement and Continuous Mode up to 1.4 kHz for XYZ. - What applications is the MLX90392 suitable for?
Suitable for joysticks, rotary knobs, linear strokes, and complex 3D position sensing.
