Summary of EEPD LAUNCHES AMD RYZEN EMBEDDED NUC BOARDS & MINI PCS
EEPD has launched two new industrial SBCs, the Profive NUCV and Profive NUCR, based on AMD Ryzen Embedded V1000 and R1000 series processors. Designed for sectors like aerospace, IoT, and medical imaging, these boards feature integrated Radeon Vega graphics, support Windows and Linux OS, and offer robust connectivity including Gigabit Ethernet, M.2 slots, and multiple USB ports. They operate within a wide voltage range and temperature spectrum suitable for demanding environments.
Parts used in the Profive NUCV and Profive NUCR:
- AMD Ryzen Embedded V1000 series CPU (NUCV)
- AMD Ryzen Embedded R1000 series CPU (NUCR)
- Integrated AMD Radeon Vega Graphics
- DDR4 Memory up to 32 GB
- Gigabit Ethernet Ports
- MicroSD card slot
- M.2 Type B, Type E, and Type M sockets
- SATA (6G) connector
- USB 3.1 Gen1 and USB 2.0 ports
- RS-232 and RS-232/485 ports
- LVDs Connector
- Mini-DP++ connectors

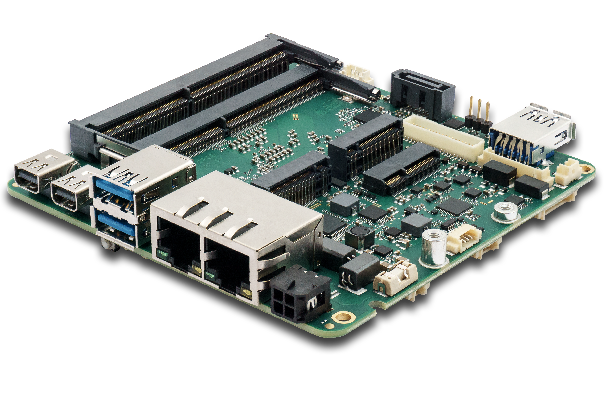

Interest in SBCs is growing and even though their capabilities have improved over the years, there is a yearning for more, from processing power to IOs. To add to their already impressive line of SBC offerings, EEPD (Electronic Equipment Production and Distribution) recently announced the release of two SBCs; the Profive NUCV and the Profive NUCR which are based on the AMD Ryzen Embedded V1000 and R1000 respectively.
The boards were both designed for industrial applications with EEPD mentioning that the boards were targetted at applications across various sectors including; aerospace and defense, industrial control and automation, IoT, Networking and thin clients, Medical Imaging, digital casino gaming, along with digital signage and retail to mention a few.
In line with the NUC standard, the boards utilize the AMD Ryzen Embedded platform with a Radeon Vega Graphics card integrated into the system. While the boards have a lot of similarity in face value, quite a number of differences exist within them. For instance, the NUCV comes with 4 different variants offering 4 different Ryzen Embedded V1000 series CPU and Vega 3, 8 and 11 AMD Radeon Graphics to choose from, while the NUCR, on the other hand, only has two variants of the R1000 series CPU with just the AMD Radeon Vega 3 graphics option. Both boards support operating systems like Windows 10, the Windows 10 IoT Enterprise and Linux ubuntu among others. A summary of the features of these two board categories is provided below;
SBC Profive NUCV Specifications
- AMD processors of the V1000 series – V1202B / V1605B / V1756B / V1807B up to 35W TDP (max TDP supported by the board)
- Integrated GPU – AMD Radeon Vega 3 / 8 / 11 Graphics
- Up to 32 GB memory DDR4
- 2x Gigabit Ethernet Ports
- 1x MicroSD card slot
- 3x M.2 Type B, Type E, Type M sockets
- 1x SATA (6G) with a separate power connector
- Up to 4x USB-Ports: 3x USB 3.1 Gen1, 1x USB 2.0
- 1x RS-232 Port + 1x RS-232/485 Port
- 24-bit dual-channel LVDS-Connector
- 2x Mini-DP++ connector up to 4096×2160 @ 60Hz
- Operating Systems: Microsoft Windows 10 / 10 IoT Enterprise, Linux Ubuntu 18.04 LTS
- 8V to 32 V power supply range (automotive grade)
- Max. Operating temperature range commercial at 0°C to + 60°C; others on request
- Max. Storage temperature range from -40°C to +85°C
- Max. relative humidity: 95% @ 40°C, non-condensing
- Dimensions 101.6 mm x 101.6 mm
Read more: EEPD LAUNCHES AMD RYZEN EMBEDDED NUC BOARDS & MINI PCS
- Which processors power the Profive NUCV?
The Profive NUCV uses AMD Ryzen Embedded V1000 series CPUs with options for Vega 3, 8, or 11 graphics. - What graphics options are available for the Profive NUCR?
The Profive NUCR features the AMD Ryzen Embedded R1000 series CPU with only the AMD Radeon Vega 3 graphics option. - Can these boards run Linux operating systems?
Yes, both boards support Linux Ubuntu among other operating systems. - What is the maximum memory capacity supported by these SBCs?
Both boards support up to 32 GB of DDR4 memory. - How many Gigabit Ethernet ports do the boards have?
The boards come equipped with 2x Gigabit Ethernet Ports. - What is the power supply range for these industrial boards?
The boards accept an 8V to 32V power supply range, which is automotive grade. - What display connectors are included on the boards?
The boards include 2x Mini-DP++ connectors capable of up to 4096×2160 @ 60Hz. - Are there M.2 expansion slots on these boards?
Yes, the boards provide 3x M.2 sockets supporting Type B, Type E, and Type M.
