Summary of BOARDCON IDEA3399 FEATURE-RICH SBC COMES WITH M.2 NVME SSD AND 4G LTE PCIE SOCKETS
Boardcon's Idea3399 is a single-board computer featuring the Rockchip RK3399 processor. It utilizes a CM3399 system-on-module with castellated holes rather than the previous SO-DIMM format. This new board includes an M.2 NVMe SSD slot and an mPCIe socket for 4G LTE modems, targeting AIoT applications like robots and PCs.
Parts used in the Idea3399:
- Rockchip RK3399 processor
- CM3399 system-on-module
- M.2 NVMe SSD slot
- mPCIe socket
- MicroSD card slot
- Gigabit Ethernet (RTL8211E)
- Dual-band WiFi 5 and Bluetooth 4.1
- Realtek ALC5651 Audio CODEC
- CR1220 battery for RTC
A few years back, Boardcon introduced EM3399 single board computer powered by a Rockchip RK3399 processor through the company’s PICO3399 SO-DIMM system-on-module.
They’ve now designed another RK3399 based SBC , the Idea3399 – comprised of a baseboard and module, but instead of re-using the SO-DIMM module, CM3399 system-on-module with castellated holes was used instead. The new board comes with many of the same features as their first board but adds an M.2 NVMe SSD slot and mPCIe socket for 4G LTE modem on the back of the board.

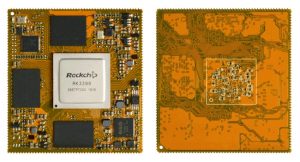

CM3399 SoM
Key Features And Specifications:
- SoC – Rockchip RK3399 dual Cortex-A72 @ 1.8GHz + quad Cortex-A53 @ 1.4GHz
- System Memory – 4GB LPDDR4
- Storage – 8GB eMMC flash
- 202 castellated pin (1.3mm pitch) with USB2.0 host, USB3.0 host, USB OTG, UART, MIPI, Ethernet, SPI, HDMI out, I2C, I2S, PCI Express, SDIO, SD/MMC, eDP, Camera, PWM, ADC IN, etc…
- Power – Supply Voltage: 5V; RK808 PMU
- Dimensions – 55 x 50mm (8 Layers, complying with EMS/EMI)
The module comes with Android 7.1.2 preinstalled and targets AIoT applications such as intelligent interactive devices, personal computers, and robots. The Android BSP is based on Linux 4.4.126 and the cross-compilation toolchain runs on Ubuntu 16.04.
Idea3399 SBC Specifications:
- SoM – CM3399 module described above
- Storage – MicroSD card slot, M.2 2280 NVMe SSD slot
- Video Output / Display I/F
- 1x mini Display Port
- 1x HDMI 2.0 port up to 4Kp60
- Up to 2x MIPI DSI interface for LCD (1x multiplexed with MIPI CSI)
- Audio – Realtek ALC5651 Audio CODEC, 3.5mm jack for headphone, 14-pin header for MIC Array, digital audio via HDMI
- Camera – Up to 2x MIPI CSI interface for 13MP camera (1x multiplexed with MIPI DSI); Optional OV13850 camera sensor (13MP)
- Connectivity
- Gigabit Ethernet (RTL8211E)
- Dual-band (2.4GHz/5GHz) 802.11 a/b/g/n/ac WiFi 5 and Bluetooth 4.1
- Optional 3G/4G LTE mPCIe card + SIM card slot
- USB – 1x USB2.0 host port, 2x USB 3.0 Type-C ports
- Serial
- 4-wire UART1 (Multiplexed signal with Ethernet), 1x 8pin connector
- 3-pin debug UART2
- 4-wire UART3 (Multiplexed signal with Ethernet), 1x 4pin connector
- Expansion Headers – 8-pin for SPI
- Misc – IR receiver; recovery, power and reset buttons; CR1220 battery for RTC
- Power Supply – DC 5V/3A or 3.6V~12.8V Li-Ion battery; 2x 5-pin power header; 2×4-pin PoE header
- Dimensions – 135mm x 90mm
Read more: BOARDCON IDEA3399 FEATURE-RICH SBC COMES WITH M.2 NVME SSD AND 4G LTE PCIE SOCKETS
- What processor powers the Idea3399?
The board is powered by a Rockchip RK3399 processor. - How does the Idea3399 differ from the PICO3399 module?
The Idea3399 uses a CM3399 system-on-module with castellated holes instead of an SO-DIMM module. - Does the Idea3399 support NVMe storage?
Yes, it includes an M.2 2280 NVMe SSD slot. - Can the Idea3399 connect to a 4G LTE network?
Yes, it features an optional mPCIe card slot for 3G/4G LTE modems. - What video output options are available on the Idea3399?
It offers one mini Display Port, one HDMI 2.0 port up to 4Kp60, and up to two MIPI DSI interfaces. - Which operating system runs on the Idea3399?
Android 7.1.2 is preinstalled based on Linux 4.4.126.
