Summary of PIC16F84A LIGHT EFFECTS CIRCUITS
This article describes a PIC16F84A-based lighting control system capable of generating programmable effects like psychedelic patterns and sequential blinking. The console features 12 outputs: 8 for dimmable filament lamps and 4 for On-Off control of external devices. Users can adjust brightness, select modes via switches, and program sequences by connecting the unit to a PC's serial port using dedicated software.
Parts used in the PIC16F84A Light Effects Circuits:
- PIC16F84 microcontroller
- Opto-relay
- Triac
- Filament lamps
- Strobe lights
- Wood lamps
- Spotlight motors
- Mirrors
- 8 Potentiometers
- 8 Three-position diverters
- 2 Status LEDs
- 4 On-off switches
- Sequential speed switch and potentiometer
- Flash speed switch and potentiometer
- Psychedelic level switch, LED, and potentiometer
- Microphone (internal or external)
- Temporary dark button
- PC with serial port
- Programming software
PIC16F84 controlled by the opto-relay, triac strong as elements driven by a lamp, light effects circuits various flashing patterns and eye-catching images are creating some computer Connection is in general 4, 8 channel output of the lamp are PIC16F84… Electronics Projects, PIC16F84A Light Effects Circuits “microchip projects, microcontroller projects, pic assembly example, pic16f84 projects,
PIC16F84 controlled by the opto-relay, triac strong as elements driven by a lamp, light effects circuits various flashing patterns and eye-catching images are creating some computer Connection is in general 4, 8 channel output of the lamp are
PIC16F84 THE CONSOLE LIGHTS
* 8 outputs for filament lamps on which you can adjust the brightness and set 3 different types of effects: psychedelic, sequential blinking or their mixing;
* 4 outputs ON-OFF from which you can take the power for any type of user: strobe lights, wood lamps, motors to move spotlights, mirrors, and so on.
On the console panel are available the following commands:
* 8 potentiometers to adjust the brightness of each lamp
* 8 diverters three positions to shut down, turn on or enable the effects on each lamp
* 2 LEDs that indicate the status of 12 outputs (8 lights + 4 on-off)
* 4 switches for controlling expenditure on-off
* Switch, led potentiometer and speed relative to the sequential
* Switch, led potentiometer and speed relative to the flash (flash)
* Switch, led, potentiometer level and microphone (internal or external) relating to the psychedelic
* Button dark temporary (all lights off)

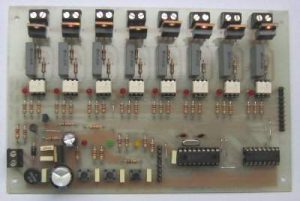

PIC16F84 LIGHT GAME
This unit generates light effects (both On-Off that fade) on 8 filament bulbs connected to the corresponding channels. There are lighting effects for 4 lamps (4 +4, channels 5 … 8 are the repetition of 1… 4) and 8 lamps.

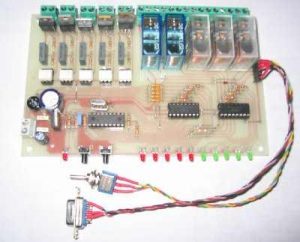

PIC16F84 PROGRAMMABLE LIGHTING EFFECTS
The draft presented in this document is a generator of programmable lighting effects and relay outputs can be used to illuminate cribs, scenes, illuminated signs, etc., or more simply to turn so programmed the various users connected to the outputs.
The programming (ie lighting effects, the evolution of the relay and timing of implementation) is done by connecting the circuit to the serial port of a PC (personal computer) and using the accompanying software that allows you to view and edit the various developments in operation time. Of this project are available: the schematic, drawings, printed circuit board, all sources (both firmware resident on the cpu that used for programming the computer) and various documents and diagrams flow (flow-charts)
Source: sasasbarra.altervista.org PIC16F84A Light Effects Circuits schematic pcb pic assembly source code alternative link:
FILE DOWNLOAD LINK LIST (in TXT format): LINKS-1672.zip
Source: PIC16F84A LIGHT EFFECTS CIRCUITS
-
What types of lighting effects can this circuit generate?
The circuit creates psychedelic, sequential blinking, and mixed flashing patterns. -
How many channels are available for controlling filament lamps?
There are 8 outputs specifically designed for filament lamps with adjustable brightness. -
Can I connect external devices other than lamps to this system?
Yes, there are 4 On-Off outputs usable for strobe lights, wood lamps, motors, or mirrors. -
How is the programming of lighting effects performed?
Programming is done by connecting the circuit to a PC serial port and using accompanying software to edit developments. -
What controls are available on the console panel for brightness?
Eight potentiometers are provided to adjust the brightness of each individual lamp. -
How do I activate or deactivate specific lighting effects?
Eight three-position diverters allow you to shut down, turn on, or enable effects on each lamp. -
Is it possible to control effects using sound input?
Yes, a microphone (internal or external) can be used to relate levels to the psychedelic effect. -
What happens when the temporary dark button is pressed?
Pressing this button turns all lights off temporarily.
