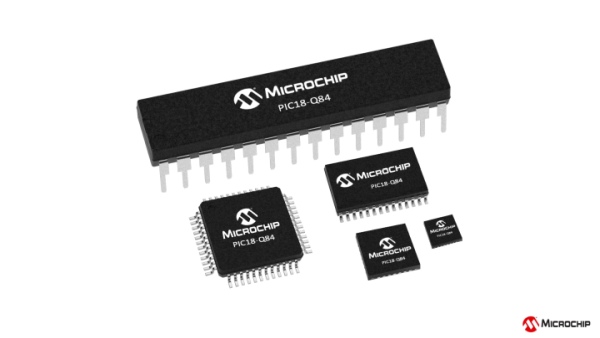

Microchip’s PIC18-Q84 8-bit PIC® MCUs with an extensive array of CIPs and CAN FD
The PIC18-Q84 family of microcontrollers (MCUs) from Microchip Technology expands the 8-bit PIC MCUs by combining an extensive array of CIPs with controller area network flexible data rate (CAN FD). These MCUs contain time-saving CIPs in up to 48-pins with up to 128 KB of Flash memory. The family offers increased flexibility with customizable timers and automated analog signal analysis for real-time response. Additionally, they include industry-standard features like the JTAG boundary scan, 32-bit cyclic redundancy check (CRC) with memory scan on boot for added system safety. Users can benefit greatly from the saved time since it is significantly easier to configure a hardware-based peripheral instead of writing and validating an entire software routine to accomplish a task.
Features
- CAN FD module
- Supports data bit rate up to 10 Mbps
- Backward compatible to support: CAN 2.0A, 2.0B
- Meets ISO11898-1:2015
- Direct memory access (DMA)
- Controller eliminates the need for CPU involvement in data transfers
- I2C and SPI
- Improves system performance and reduces power consumption
- Vectored interrupts (VI)
- Provides faster response times with fixed latency reducing software overhead
- Serial communications
- UART with support for asynchronous, DMX, DALI, and LIN
Read more: PIC18F-Q84 FAMILY OF MICROCONTROLLERS
