Summary of UNIVERSAL OPAMP BOARD FOR SMD SOT23-5 PACKAGE

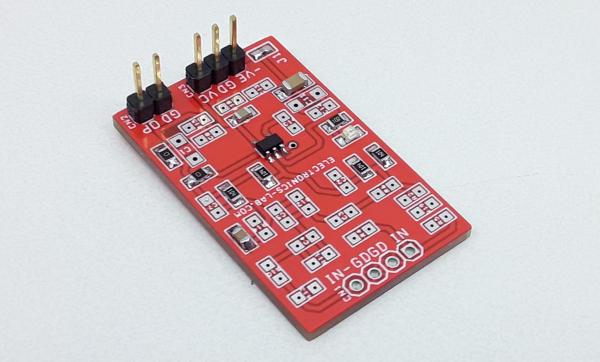

This small PCB hosts a single SOT23-5 op amp (LM321 recommended) and provides flexible wiring for single- or dual-supply operation, multiple input/output headers, a power LED, and jumper-selectable supply mode to support many op-amp circuits like filters, differential amps, and compensation networks.
Parts used in the OPAMP SOT23-5 Breakout Board:
- LM321 op-amp (SOT23-5) or any SOT23-5 op amp with LM321 pinout
- SOT23-5 PCB footprint
- Jumper J1 (to select single or dual supply)
- 4-pin male header connector for inputs
- 3-pin male header for supply input (single or dual)
- Power LED D1
- Resistor for LED (assumed on PCB)
- PCB (37.31 x 23.50 mm)
This is easy to build and very useful project for hobbyists and students to learn and create OPAMP-based projects. The project accommodates a single OPAMP in the SOT23-5 package. The project provides the user with multiple choices and extensive flexibility for different applications circuits and configurations. It provides the user with many combinations for various circuit types including active filters, differential amplifiers, and external frequency compensation circuits etc. A few examples of application circuits are given below. LM321 op-amp is the right choice to use for this board or any SOT23-5 OPAMP with the same pin configuration as LM321 can be used. It supports dual supply or single supply, Jumper J1 is provided to use this board with a single supply, D1 power LED.
FEATURES
- Single or Dual Supply User-defined (Jumper)
- 4 Pin Male Header Connector for inputs
- 3 Pin Male Header for Supply input (Single or Dual)
- Jumper J1 Close for single Supply, Open for Dual Supply
- LED D1 Power LED
- Any SOT23-5 Op-Amp Can be used Pin configuration – LM321
- PCB Dimensions 37.31 x 23.50 mm
- What op amp is recommended for this board?
LM321 is the recommended choice, or any SOT23-5 op amp with the same pin configuration as LM321. - Can this board be used with a single supply?
Yes, closing Jumper J1 configures the board for single supply operation. - Can this board be used with a dual supply?
Yes, leaving Jumper J1 open configures the board for dual supply operation. - What headers are provided for connections?
The board includes a 4-pin male header for inputs and a 3-pin male header for supply input. - Is there a power indicator on the board?
Yes, D1 is a power LED provided on the board. - What types of circuits can be built with this board?
The board supports active filters, differential amplifiers, external frequency compensation circuits, and other op-amp based configurations. - What package of op amp does the PCB accommodate?
The PCB accommodates a single op amp in the SOT23-5 package. - What are the PCB dimensions?
The PCB dimensions are 37.31 x 23.50 mm.
