Summary of MICROCHIP TECHNOLOGY MCP6C02 HIGH-SIDE CURRENT SENSE AMPLIFIERS
Microchip Technology MCP6C02 high-side current sense amplifiers provide zero-drift input offset correction and very low offset drift, with preset gains of 20, 50, and 100 V/V. They support uni- and bi-directional sensing, operate over a 3V to 65V input common-mode range, and include POR and enhanced EMI protection. Available in a 6-pin SOT-23 package, they target motor control, level shifting, industrial computing, and battery monitoring, offering high DC precision and low input error.
Parts used in the MCP6C02 High-Side Current Sense Amplifiers Project:
- Microchip MCP6C02 high-side current sense amplifier (preset gains: 20V/V, 50V/V, 100V/V)
- 6-pin SOT-23 package

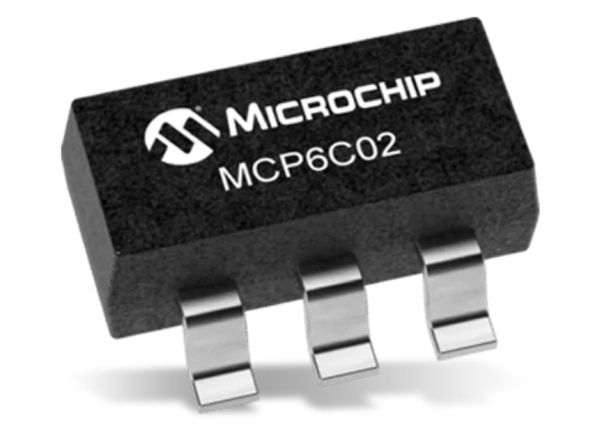

Microchip Technology MCP6C02 High-Side Current Sense Amplifiers are amplifiers that provide input offset voltage correction for very low offset drift. These amplifiers offer preset gains of 20V/V, 50V/V, and 100V/V. The MCP6C02 high-side current sense amplifiers feature zero-drift architecture that results in very low input errors also allowing design flexibility. These amplifiers feature high DC precision, POR protection, and enhanced EMI protection.
The MCP6C02 high-side current sense amplifiers offer a maximum offset of less than 16µV with 3V to 65V specified input common-mode voltage range. These amplifiers are available in a small 6-pin SOT-23 package. Typical applications include motor control, analog level shifter, industrial computing, and battery monitor/tester. These amplifiers support both unidirectional and bi-directional applications.
Features
- Bidirectional or unidirectional operation
- High DC precision
- 20V/V, 50V/V, and 100V/V preset gains
- POR protection
- Enhanced EMI protection
- Zero-drift architecture
- Input offset voltage correction
Specifications
- 2V to 5.5V input power supply
- 154dB Common Mode Rejection Ratio (CMRR)
- 138dB Power Supply Rejection Ratio (PSRR)
- 50kHz (typical) bandwidth
- 490µA supply current
- 118dB @ 2.4GHz Electromagnetic Induction Rejection Ratio (EMIRR)
- -40°C to 125°C extended operating temperature range
- 6-pin SOT-23 package
Read more: MICROCHIP TECHNOLOGY MCP6C02 HIGH-SIDE CURRENT SENSE AMPLIFIERS
- What preset gains are available for the MCP6C02?
The MCP6C02 offers preset gains of 20V/V, 50V/V, and 100V/V. - Does the MCP6C02 support bidirectional sensing?
Yes, the MCP6C02 supports both unidirectional and bi-directional applications. - What input common-mode voltage range is specified for the MCP6C02?
The MCP6C02 has a specified input common-mode voltage range of 3V to 65V. - What is the maximum input offset for the MCP6C02?
The MCP6C02 offers a maximum offset of less than 16µV. - What package is the MCP6C02 available in?
The MCP6C02 is available in a small 6-pin SOT-23 package. - What supply voltage range does the MCP6C02 accept?
The MCP6C02 accepts an input power supply from 2V to 5.5V. - What applications are typical for the MCP6C02?
Typical applications include motor control, analog level shifter, industrial computing, and battery monitor/tester. - What protections and architectures does the MCP6C02 feature?
The MCP6C02 features zero-drift architecture, POR protection, and enhanced EMI protection. - What is the operating temperature range of the MCP6C02?
The MCP6C02 has an extended operating temperature range of -40°C to 125°C. - What are key performance specifications of the MCP6C02?
Key specs include 154dB CMRR, 138dB PSRR, ~50kHz typical bandwidth, ~490µA supply current, and 118dB EMIRR at 2.4GHz.
