Summary of MYA15XC-T CPU MODULE: MYIR’S SECOND TINY ARM SOM
MYIR’s MYC-YA15XC-T is a compact 39 × 37 mm system-on-module built around the STM32MP1 family (default STM32MP151AAC3T) with STPMIC1 power management. It omits an onboard Ethernet PHY and is offered in configurations from 256MB DDR3 + 256MB NAND to 512MB DDR3L + 4GB eMMC. A 148-pin castellated expansion exposes many I/O signals; a shielding cover is included. It runs Linux with documentation provided. The companion MYD-YA15XC-T development board adds USB-C DRP, two USB 2.0 host ports, gigabit Ethernet, LCD, camera, and microSD support.
Parts used in the MYC-YA15XC-T CPU module:
- MYC-YA15XC-T CPU module (39mm x 37mm)
- STM32MP151AAC3T processor (compatible with STM32MP153AAC3 and STM32MP157AAC3)
- STPMIC1 power management IC
- 256MB DDR3 (or 512MB DDR3L depending on configuration)
- 256MB NAND flash (or 4GB eMMC flash depending on configuration)
- 1.0 mm pitch 148-pin castellated-hole expansion interface
- Shielding cover
- MYD-YA15XC-T development board (optional companion)
- USB Type-C DRP connector (on development board)
- USB 2.0 host ports (2, on development board)
- Gigabit Ethernet interface (on development board)
- LCD interface (on development board)
- Camera interface (on development board)
- Micro SD card slot (on development board)

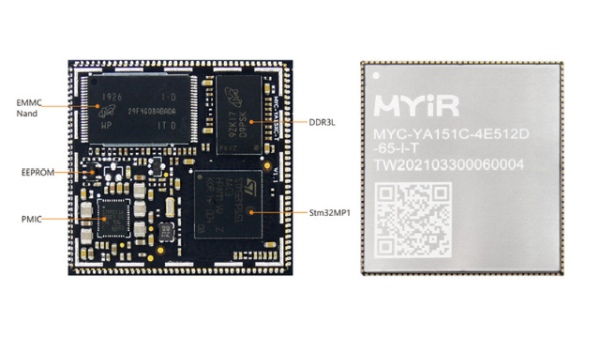

We have seen many system on modules in the market already targeting consumer electronics and smart homes. For newbies, a system on module is an embedded computer that can be plugged in or soldered with the carrier board. China-based MYIR has launched the MYC-YA15XC-T CPU module that is the second tiny Arm system on module built around the STM32MP1 series processor.
Since this is the second module in the Arm-based system on modules manufactured by MYIR, this MYC-YA15XC-T has a smaller footprint, measuring only 39mm by 37mm. The MYC-Y157XC-T module comes with the STM32MP151AAC3T processor and STMicroelectronics’ STPMIC1 power management IC. However, it is important to note that the system on module is also compatible with STM32MP153AAC3 and STM32MP157AAC3 processors and can be customised.
When compared to its predecessor, it features no Ethernet PHY chip on board. This module is manufactured with different configurations varying in storage and memory. The module ranges from 256MB DDR3 and 256MB NAND flash up to 512MB DDR3L and 4GB eMMC flash storage.
The MYC-YA15XC-T CPU module is delivered with a shielding cover by default. A number of peripherals and IO signals are brought out through a 1.0 mm pitch 148-pin stamp-hole (Castellated-Hole) expansion interface to make the module an excellent embedded controller for applications like industrial control, consumer electronics, smart home, medical and etc.
Regarding the software support for the hardware, it is capable of running Linux OS and comes with detailed documentation for hardware and software setup. When we talk about a system on module, it often requires a carrier board. But what if the same setup is provided on a PCB making it a powerful development board with a rich set of interfaces. The MYD-YA15XC-T development board supports Linux OS and features 1x USB Type-C DRP, 2x USB2.0 host, a gigabit ethernet, LCD, camera, and Micro SD card slot.
Read more: MYA15XC-T CPU MODULE: MYIR’S SECOND TINY ARM SOM
- What processor does the MYC-YA15XC-T use?
The module comes with the STM32MP151AAC3T processor and is compatible with STM32MP153AAC3 and STM32MP157AAC3 processors. - What power management IC is used on the module?
The module uses STMicroelectronics STPMIC1 as the power management IC. - What are the memory and storage options available?
Configurations range from 256MB DDR3 with 256MB NAND flash up to 512MB DDR3L with 4GB eMMC flash. - Does the module include an Ethernet PHY on board?
No, this module does not include an Ethernet PHY chip on board. - What interface brings out peripherals and IO signals?
A 1.0 mm pitch 148-pin castellated-hole (stamp-hole) expansion interface brings out peripherals and IO signals. - Is there a shielding cover included?
Yes, the MYC-YA15XC-T CPU module is delivered with a shielding cover by default. - What operating system does the module support?
The module is capable of running Linux OS and comes with detailed hardware and software documentation. - What additional features does the MYD-YA15XC-T development board provide?
The development board supports Linux and features USB Type-C DRP, two USB 2.0 host ports, gigabit Ethernet, LCD, camera, and a micro SD card slot.
