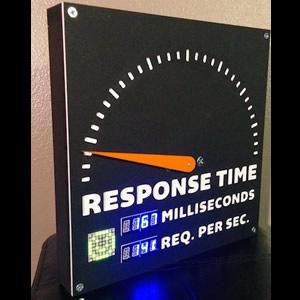

Been awhile since I posted anything here, so I thought I’d use this post to give some more detail on a project I just completed. The whole idea was to create a giant meter to show website response time almost like a speedometer would. The result is something that’s both fun to watch and provides a meaningful ‘heartbeat’ of current status. After several revisions and different designs along the way, I ended up with what you see here.

Server response time meter

Construction & Design

The meter is carved using my CNC machine from 1/4″ bi-color HDPE (12 inches square). This is a great material to cut signs or other carvings with because anything carved out is the alternate material color, so there’s no painting/masking/re-painting needed. The needle is cut from 1/8″ orange acrylic which worked great for the speedometer theme. For mounting the micro servo, I designed a hole matching the shape of the outer plastic casing which the servo I chose had (see parts list for a link). I designed the whole thing using Inkscape and Easel, mainly because they are free and fairly easy to use. Check out my bill of materials if you are interested in using the same HDPE and acrylic.



For more detail: Server response time meter
